Description
Product Overview

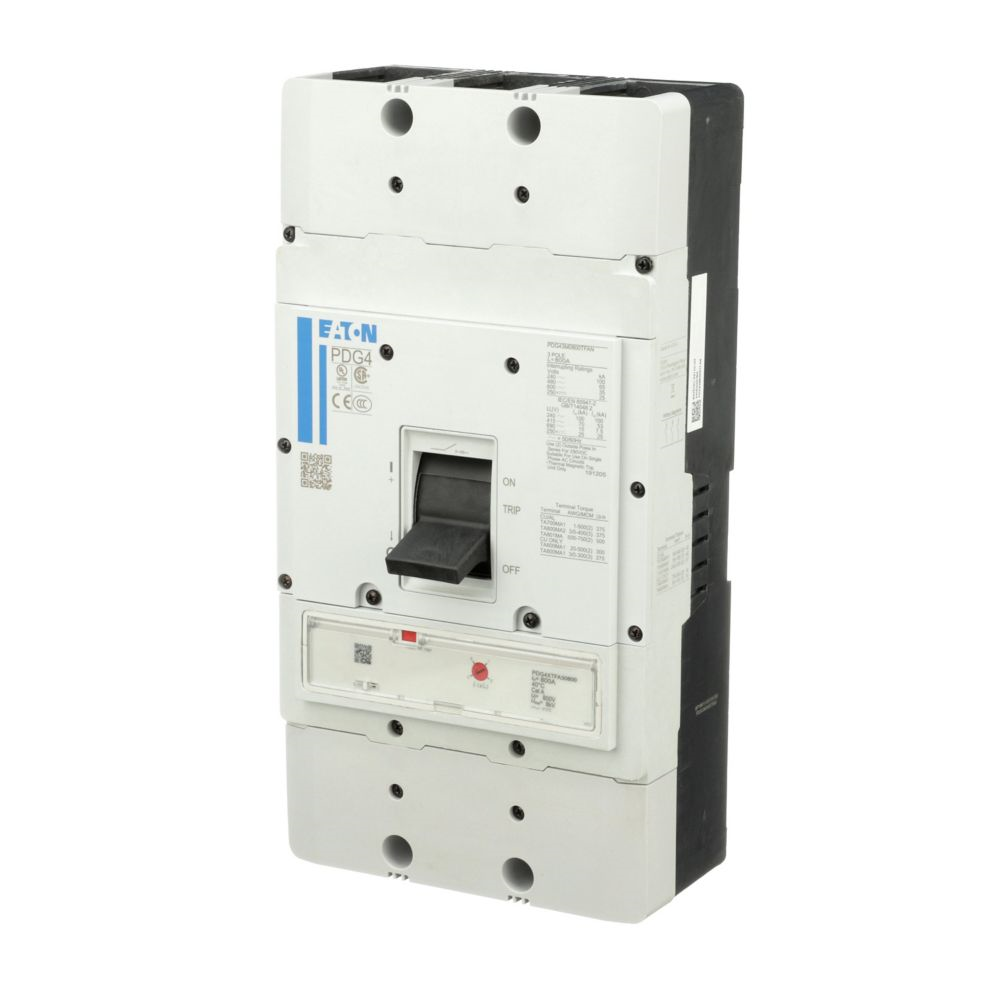

Product Name: Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number: PDE43N0800B1NS
Model Code: PDE43N0800B1NS
UPC: 786689321741
EAN: 9010238112155
Dimensions (LxHxW): 40.64cm x 10.3cm x 20.955cm
Weight: 10.73 kg
Compliances: RoHS conform
Certifications: IEC CE
Technical Specifications
Amperage Rating: 800 A
Voltage rating: 220 V – 440 V
Circuit breaker frame type: PDE4
Terminals: Screw Terminals
Features: Protection unit
Frame: 4
Mounting Method: Fixed
Degree of protection: IP2X
Adjustment range short-term delayed short-circuit release: Min 0 A, Max 0 A
Adjustment range undelayed short-circuit release: Min 1600 A, Max 6800 A
Device construction: Complete device in housing
Overload release current setting: Min 320 A, Max 800 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: 70 kA
Type of control element: Rocker lever
Type of electrical connection of main circuit: Screw connection
Voltage rating min: 220 V, max: 440 V
Power loss: 270 W
Number of poles: Three-pole
Functions: System and cable protection
Type: Circuit breaker
Special features: PXR 10 electronics
Position of connection for main current circuit: Front side
Customs Tariff Code: 85362010
