Description
Product Overview

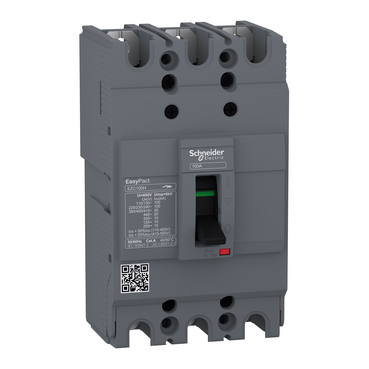

EasyPact EZC100H is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is suitable for standard applications in industries and buildings, offering good performance at a competitive price.
The breaking capacity (Icu) is 30 kA rms at 415 VAC 50/60 Hz. The operational voltage rating is 550 V AC 50/60 Hz or 250 V DC. The thermal-magnetic trip unit is rated at 80 A and provides fixed overload and instantaneous protections.
This 3 poles version measures 7.5 cm width x 13 cm height x 6 cm depth and comes with various optional functions and accessories. The EasyPact EZC100H complies with international standards IEC 60947 and UL 508, and holds marine certifications.
Technical Specifications
Range of product: EasyPact
Product type: Circuit breaker
Device short name: Easypact EZC100H
Device application: Distribution
Poles description: 3P
Protected poles: 3t
Network type: DC and AC
Network frequency: 50/60 Hz
Rated current (In): 80 A at 40 °C
Rated insulation voltage (Ui): 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage (Uimp): 6 kV according to IEC 60947-2
Rated operational voltage (Ue): 550 V AC 50/60 Hz and 250 V DC conforming to IEC 60947-2
Breaking capacity code: H
Breaking capacities (Icu): 10 kA at 125 V DC 1P; 10 kA at 250 V DC 2P; 10 kA at 550 V AC; 100 kA at 110-130 V AC; 100 kA at 220-240 V AC; 20 kA at 440 V AC; 30 kA at 380-415 V AC all conforming to IEC 60947-2
Rated service breaking capacity (Ics): Ranges from 2.5 kA to 50 kA depending on voltage and current type as per IEC 60947-2
Suitability for isolation: Yes, IEC 60947-2 compliant
Utilisation category: Category A
Trip unit name and technology: TM-D, Thermal-magnetic
Protection type: Overload and short-circuit
Pollution degree: 3 as per IEC 60664-1 and IEC 947-1
Mechanical and Mounting Details
Control type: Toggle
Mounting mode: Fixed
Mounting support: Backplate
Connections: Front side for both upside and downside
Mechanical durability: 13000 cycles
Connection pitch: 2.5 cm
Local signalling: Positive contact indication
Neutral protection setting: Without
Earth-leakage protection: Without
Dimensions
Height: 13 cm
Width: 7.5 cm
Depth: 6 cm
Standards and Environment
Standards: GB/T 14048.2; JIS C8201-2-2; EN/IEC 60947-2; EN/IEC 60947-1
IP Degree of Protection: IP20 IEC 60529
IK Degree of Protection: IK07 IEC 62262
Operating ambient temperature range: -25 to 70 °C
Storage ambient temperature range: -35 to 85 °C
Packing Units
Package 1: 9.5 cm height x 8.5 cm width x 14.0 cm length, weight 0.82 kg, 1 unit
Package 2: 15.0 cm height x 30.0 cm width x 40.0 cm length, weight 10.295 kg, 12 units
Package 3: 80.0 cm height x 120.0 cm width x 384.0 cm length, weight 323.328 kg, 384 units
Warranty
Contractual warranty of 18 months
Customs Tariff Code
85362010
