Description

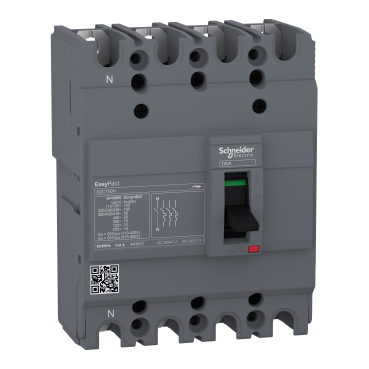

EZC100H4060 Circuit Breaker
This is a 60A circuit breaker for EasyPact EZC100H. This product can work below rated operational voltage(Ue) 550VAC at 50/60Hz and 250VDC. This version of product is designed with 4 poles frame and detection on 3 poles, equipped with TM-D thermal-magnetic trip unit for protection. It complies with IEC60947 standards with CE certification and independent lab certifications (KEMA, ASEFA, TUV). Certified for operation in pollution degree 3 environment as defined by IEC60947 and tested for extreme atmospheric conditions.
Mountable vertically or horizontally in metal enclosure and padlockable for safety. Slots are provided for indication or voltage release auxiliaries positioning behind the front cover.
Specifications
Range of product: EasyPact
Product or component type: Circuit breaker
Device short name: Easypact EZC100H
Circuits poles: 4 poles with 3 protected poles
Network type: AC and DC
Network frequency: 50/60 Hz
Rated current [In]: 60 A at 40 °C
Rated insulation voltage [Ui]: 690 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp]: 6 kV
Rated operational voltage [Ue]: 550 V AC 50/60 Hz, 250 V DC
Breaking capacity code: H
Breaking capacity: 10 kA Icu at 125 V DC 1P; 10 kA Icu at 250 V DC 2P; 10 kA Icu at 550 V AC; 100 kA Icu at 110-130 V AC; 20 kA Icu at 440 V AC; 50 kA Icu at 220-240 V AC; 30 kA Icu at 380-400 V AC; 30 kA Icu at 415 V AC
Rated service breaking capacity [Ics]: 5 kA at 125 V DC; 5 kA at 250 V DC; 5 kA at 440 V AC; 2.5 kA at 550 V AC; 15 kA at 380-400 V AC; 25 kA at 220-240 V AC; 50 kA at 110-130 V AC; 7.5 kA at 415 V AC
Suitability for isolation: Yes
Utilisation category: Category A
Trip unit name and technology: TM-D, thermal-magnetic
Protection type: Short-circuit and overload protection
Pollution degree: 3
Main Features
Control type: Toggle
Mounting mode: Fixed, on backplate
Connection pitch: 2.5 cm
Mechanical durability: 13000 cycles
Local signalling: Positive contact indication
Neutral protection setting: Without protection
Earth-leakage protection: Without
Dimensions
Height: 13.0 cm
Width: 10.0 cm
Depth: 6.0 cm
Compliance & Environment
Standards: EN/IEC 60947-2, GB/T 14048.2, EN/IEC 60947-1, JIS C8201-2-2
IP degree of protection: IP20
IK degree of protection: IK07
Operating ambient air temperature: -25 to 70 °C
Storage ambient air temperature: -35 to 85 °C
Packaging: Unit Type 1 – PCE, 1 unit, 9.2 x 10.5 x 13.7 cm, 1.048 kg; Unit Type 2 – S02, 9 units, 15 x 30 x 40 cm, 9.887 kg; Unit Type 3 – P12, 288 units, 75 x 80 x 120 cm, 326 kg
Warranty: 18 months
Environmental Total lifecycle Carbon footprint: 276 CO2 equivalent
Packaging made with recycled cardboard: Yes, minimum 70% content
Packaging without single-use plastic: No, minimized use according to regulations
EU RoHS compliance: Compliant
REACH Declaration and SCIP Number: 2958c627-310e-4ae4-a905-31a369b1aaa8
End of life process: No need of specific recycling operations
Take-back program: Not included
