Description

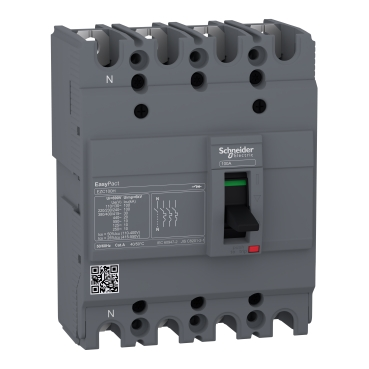

EZC100H4080 – circuit breaker Easypact EZC100H – TMD – 80 A – 4 poles 3d
This is an 80 A circuit breaker for EasyPact EZC100H. It operates below rated operational voltage (Ue) 550 V AC at 50/60 Hz and 250 V DC. It has a 4 poles frame with detection on 3 poles, equipped with TM-D thermal-magnetic trip unit for protection. Compliant with IEC60947 standards, CE certified and validated by independent labs (KEMA, ASEFA, TUV) and third-party Tilva. Certified for use in pollution degree 3 environment defined by IEC60947, and withstands extreme atmospheric conditions. Device can be mounted vertically or horizontally in metal enclosure and secured by padlocking. Slots are available for indication or voltage release auxiliaries behind front cover.
Range of product: EasyPact
Product type: Circuit breaker
Device short name: Easypact EZC100H
Application: Distribution
Poles description: 4P
Protected poles: 3t
Network type: AC and DC
Network frequency: 50/60 Hz
Rated current (In): 80 A at 40 °C
Rated insulation voltage (Ui): 690 V AC at 50/60 Hz IEC 60947-2
Rated impulse withstand voltage (Uimp): 6 kV IEC 60947-2
Rated operational voltage (Ue): 550 V AC at 50/60 Hz, 250 V DC IEC 60947-2
Breaking capacity code: H
Breaking capacity: 10 kA Icu at 125 V DC (1P), 10 kA Icu at 250 V DC (2P), 10 kA Icu at 550 V AC 50/60 Hz, 100 kA Icu at 110-130 V AC 50/60 Hz, 20 kA Icu at 440 V AC 50/60 Hz, 50 kA Icu at 220-240 V AC 50/60 Hz, 30 kA Icu at 380-400 V AC 50/60 Hz, 30 kA Icu at 415 V AC 50/60 Hz (IEC 60947-2)
Rated service breaking capacity (Ics): 5 kA at 125 V DC, 5 kA at 250 V DC, 5 kA at 440 V AC 50/60 Hz, 2.5 kA at 550 V AC 50/60 Hz, 15 kA at 380-400 V AC 50/60 Hz, 25 kA at 220-240 V AC 50/60 Hz, 50 kA at 110-130 V AC 50/60 Hz, 7.5 kA at 415 V AC 50/60 Hz (IEC 60947-2)
Suitability for isolation: Yes IEC 60947-2
Utilisation category: Category A
Trip unit name: TM-D
Trip unit technology: Thermal-magnetic
Trip unit rating: 80 A at 50 °C
Protection types: Short-circuit protection and Overload protection
Pollution degree: 3 per IEC 60947
Control type: Toggle
Mounting: Fixed on backplate
Connections: Front upside and downside
Mechanical durability: 13000 cycles
Connection pitch: 2.5 cm
Local signalling: Positive contact indication
Neutral protection: Without protection
Earth-leakage protection: Without
Dimensions (HxWxD): 13 cm x 10 cm x 6 cm
Standards: EN/IEC 60947-1, JIS C8201-2-2, GB/T 14048.2, EN/IEC 60947-2
IP degree of protection: IP20 IEC 60529
IK degree of protection: IK07 EN 50102
Ambient operating temperature: -25 to 70 °C
Ambient storage temperature: -35 to 85 °C
Package 1 (PCE): H 9.5 cm, W 14 cm, L 11 cm, Weight 1.087 kg
Package 2 (S02): H 15 cm, W 30 cm, L 40 cm, Weight 9.851 kg
Package 3 (P12): H 75 cm, W 80 cm, L 120 cm, Weight 326 kg
Warranty: 18 months
Customs Tariff Code: 85362010
