Description
Product Overview

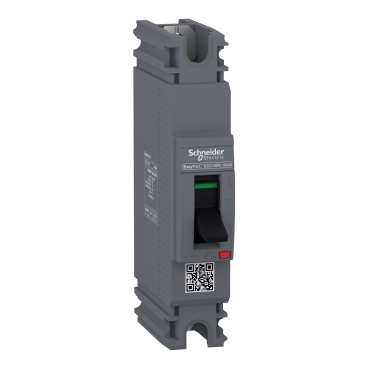

This is a 15A circuit breaker for EasyPact EZC100N. It can operate below rated operational voltage of 415VAC at 50/60Hz or 125VDC network. The ultimate breaking capacity (Icu) varies depending on network conditions; Ics equals 50% of Icu if matching is needed. This product has a one pole frame with detection on one pole and is equipped with a TM-D thermal-magnetic trip unit for protection. It complies with IEC60947 standards, CE certification, and various independent labs including KEMA, ASEFA, TUV, and Tilva.
The device is certified for operation in pollution degree III environments as per IEC60947 and withstands extreme atmospheric conditions. It can be mounted vertically or horizontally in a metal enclosure and includes padlocking to prevent safety risks. The protection degree is IP40 for direct rotary handle and IP54 for extended rotary handle. It includes slots for indication or voltage release auxiliaries depending on position within the device. Fixed dimensions are 2.5cm width, 13cm height, and 6cm depth.
Technical Specifications
Range of product: EasyPact
Product or component type: Circuit breaker
Device short name: Easypact EZC100N
Device application: Distribution
Poles description: 1P
Network type: DC, AC
Network frequency: 50/60 Hz
Rated current (In): 15 A at 40 °C
Rated insulation voltage (Ui): 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage (Uimp): 6 kV conforming to IEC 60947-2
Rated operational voltage (Ue): 125 V DC and 415 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code: N
Breaking capacities (Icu): 25 kA at 110-130 V AC 50/60 Hz, 5 kA at 125 V DC 1P, 18 kA at 220-240 V AC 50/60 Hz, 2.5 kA at 380 V AC 50/60 Hz, 2.5 kA at 400-415 V AC 50/60 Hz conforming to IEC 60947-2
Rated service breaking capacity (Ics): 12.5 kA at 110-130 V AC 50/60 Hz, 2.5 kA at 125 V DC, 9 kA at 220-240 V AC 50/60 Hz, 1.25 kA at 380 V AC 50/60 Hz, 1.25 kA at 400-415 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation: Yes conforming to IEC 60947-2
Utilisation category: Category A
Trip unit name and technology: TM-D, Thermal-magnetic
Protection type: Short-circuit and overload protection
Pollution degree: 3 conforming to IEC 60664-1 and IEC 947-1
Control type: Toggle
Mounting mode: Fixed
Mounting support: Backplate
Connection: Front on both upside and downside
Mechanical durability: 13000 cycles
Connection pitch: 2.5 cm
Local signalling: Positive contact indication
Neutral protection setting: Without protection
Earth-leakage protection: Without
Dimensions and Weight
Height: 13 cm
Width: 2.5 cm
Depth: 6 cm
Standards and Protection
Standards: EN/IEC 60947-2, JIS C8201-2-2, GB/T 14048.2, EN/IEC 60947-1
IP degree of protection: IP20 conforming to IEC 60529
IK degree of protection: IK07 conforming to IEC 62262
Ambient air temperature for operation: -25 to 70 °C
Ambient air temperature for storage: -35 to 85 °C
Packaging
Package 1: 1 PCE, 14 cm height, 4 cm width, 10 cm length, 0.348 kg weight
Package 2: 32 S02 units, 15 cm height, 30 cm width, 40 cm length, 11.258 kg weight
Package 3: 1024 P12 units, 75 cm height, 120 cm width, 80 cm length, 371 kg weight
Warranty and Customs
Warranty: 18 months
Customs Tariff Code: 85362090
