Description

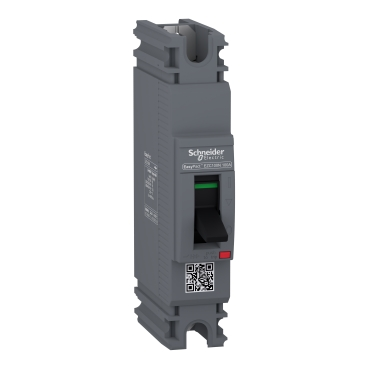

Product: EZC100N1080 – circuit breaker Easypact EZC100N – TMD – 80 A – 1 pole 1d
Range of product: EasyPact
Product or component type: Circuit breaker
Device short name: Easypact EZC100N
Device application: Distribution
Poles description: 1P
Protected poles description: 1t
Network type: DC, AC
Network frequency: 50/60 Hz
Rated current (In): 80 A at 40 °C
Rated insulation voltage (Ui): 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage (Uimp): 6 kV conforming to IEC 60947-2
Rated operational voltage (Ue): 125 V DC conforming to IEC 60947-2, 415 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code: N
Breaking capacity (Icu): 25 kA at 110 to 130 V AC 50/60 Hz, 5 kA at 125 V DC 1P, 18 kA at 220 to 240 V AC 50/60 Hz, 2.5 kA at 380 V AC 50/60 Hz, 2.5 kA at 400 to 415 V AC 50/60 Hz
Rated service breaking capacity (Ics): 12.5 kA at 110/130 V AC 50/60 Hz, 2.5 kA at 125 V DC, 9 kA at 220/230/240 V AC 50/60 Hz, 1.25 kA at 380 V AC 50/60 Hz, 1.25 kA at 400/415 V AC 50/60 Hz
Suitability for isolation: Yes conforming to IEC 60947-2
Utilisation category: Category A
Trip unit: TM-D, Thermal-magnetic, rating 80 A at 50 °C
Protection type: Short-circuit protection, Overload protection
Pollution degree: 3 conforming to IEC 60664-1 and IEC 947-1
Control type: Toggle
Mounting mode: Fixed on backplate
Connections: Front upside and downside
Mechanical durability: 13000 cycles
Connection pitch: 2.5 cm
Local signalling: Positive contact indication
Neutral protection setting: Without protection
Earth-leakage protection: Without
Dimensions: Height 13 cm, Width 2.5 cm, Depth 6 cm
Standards: EN/IEC 60947-1, GB/T 14048.2, EN/IEC 60947-2, JIS C8201-2-2
Degree of protection (IP): IP20 conforming to IEC 60529
Degree of protection (IK): IK07 conforming to IEC 62262
Ambient air temperature: Operation -25 to 70 °C, Storage -35 to 85 °C
Packaging dimensions and weights: Package 1: 3x10x14 cm, 0.345 kg, 1 unit; Package 2: 15x30x40 cm, 11.455 kg, 32 units; Package 3: 75x80x60 cm, 185.14 kg, 512 units
Warranty: 18 months
Customs Tariff Code: 85362010
