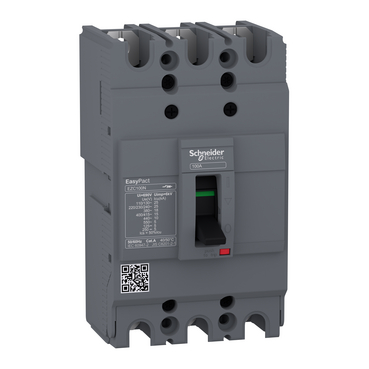

EZC100N3020 – circuit breaker Easypact EZC100N – TMD – 20 A – 3 poles 3d
Brand: Schneider Electric
Product range: EasyPact EZC – Molded-case circuit breakers from 15 to 630 A, with fixed settings
Description: EasyPact EZC100N is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price. The breaking capacity (Icu) is 15 kA rms at 415 VAC 50/60Hz. The operational voltage is 550 VAC 50/60Hz or 250 V DC. The rating of the thermal-magnetic trip unit is 20 A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (7.5 cm x 13 cm x 6 cm) comes with a variety of optional functions and accessories. EasyPact EZC100N is compliant with international standards (IEC 60947, UL 508) and marine certifications.
Poles description: 3P
Protected poles: 3t
Device application: Distribution
Rated current: 20 A at 40 °C
Rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
Rated operational voltage: 550 V AC 50/60 Hz conforming to IEC 60947-2, 250 V DC conforming to IEC 60947-2
Breaking capacity code: N
Breaking capacity (Icu): 10 kA at 440 V AC 50/60 Hz, 15 kA at 400-415 V AC 50/60 Hz, 18 kA at 380 V AC 50/60 Hz, 25 kA at 110-130 V AC 50/60 Hz, 25 kA at 220-240 V AC 50/60 Hz, 5 kA at 125 V DC 1P, 5 kA at 250 V DC 2P, 5 kA at 550 V AC 50/60 Hz
Rated service breaking capacity (Ics): 5 kA at 440 V AC 50/60 Hz, 9 kA at 380 V AC 50/60 Hz, 12.5 kA at 110/130 V AC 50/60 Hz, 12.5 kA at 220/230/240 V AC 50/60 Hz, 2.5 kA at 125 V DC, 2.5 kA at 250 V DC, 2.5 kA at 550 V AC 50/60 Hz, 7.5 kA at 400/415 V AC 50/60 Hz
Suitability for isolation: Yes conforming to IEC 60947-2
Utilisation category: Category A
Trip unit name: TM-D (Thermal-magnetic), rating 20 A at 50 °C
Protection types: Short-circuit protection, Overload protection
Pollution degree: 3 conforming to IEC 60664-1 and IEC 947-1
Control type: Toggle
Mounting mode: Fixed on backplate
Connection: Front for both upside and downside
Mechanical durability: 13000 cycles
Connection pitch: 2.5 cm
Local signalling: Positive contact indication
Neutral protection setting: Without protection
Earth-leakage protection: Without
Dimensions (HxWxD): 13 cm x 7.5 cm x 6 cm
Standards: EN/IEC 60947-1, JIS C8201-2-2, EN/IEC 60947-2, GB/T 14048.2
Protection degree: IP20, IK07
Environmental operating temperature: -25 to 70 °C
Storage temperature: -35 to 85 °C
Packaging: Package 1: 1 unit, 8.0 cm height, 8.5 cm width, 14.0 cm length, 0.822 kg weight; Package 2: 12 units, 15.0 cm height, 30.0 cm width, 40.0 cm length, 9.891 kg weight; Package 3: 192 units, 50.0 cm height, 80.0 cm width, 120.0 cm length, 173.72 kg weight
Warranty: 12 months
Customs Tariff Code: 85362010
