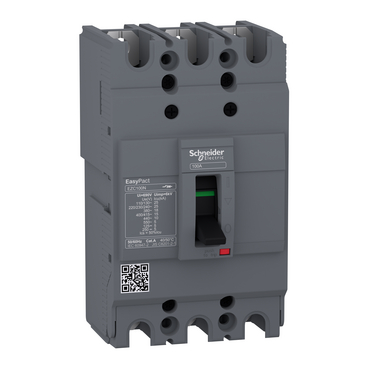

EZC100N3025 – circuit breaker Easypact EZC100N – TMD – 25 A – 3 poles 3d
Brand: Schneider Electric
Range: EasyPact EZC
Description: EasyPact EZC100N is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price. The breaking capacity (Icu) is 15kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 25A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (7.5cm x 13cm x 6cm) comes with a variety of optional functions and accessories. EasyPact EZC100N is compliant with international standards (IEC 60947, UL 508) and marine certifications.
Poles description: 3P
Trip unit rating: 25 A at 50 °C
Breaking capacity code: N
Breaking capacity (Icu): 10 kA at 440 V AC 50/60 Hz, 15 kA at 400–415 V AC 50/60 Hz, 18 kA at 380 V AC 50/60 Hz, 25 kA at 110–130 V AC 50/60 Hz, 25 kA at 220–240 V AC 50/60 Hz, 5 kA at 125 V DC (1P), 5 kA at 250 V DC (2P), 5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
Rated service breaking capacity (Ics): 5 kA at 440 V AC 50/60 Hz, 9 kA at 380 V AC 50/60 Hz, 12.5 kA at 110/130 V AC 50/60 Hz, 12.5 kA at 220/230/240 V AC 50/60 Hz, 2.5 kA at 125 V DC, 2.5 kA at 250 V DC, 2.5 kA at 550 V AC 50/60 Hz, 7.5 kA at 400/415 V AC 50/60 Hz
Suitability for isolation: Yes
Utilisation category: Category A
Trip unit technology: Thermal-magnetic
Protection type: Short-circuit protection, Overload protection
Pollution degree: 3
Network type: DC, AC
Network frequency: 50/60 Hz
Rated current In: 25 A at 40 °C
Rated insulation voltage Ui: 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage Uimp: 6 kV conforming to IEC 60947-2
Rated operational voltage Ue: 550 V AC 50/60 Hz and 250 V DC conforming to IEC 60947-2
Control type: Toggle
Mounting mode: Fixed
Mounting support: Backplate
Connection position: Front (Upside and downside)
Mechanical durability: 13000 cycles
Connection pitch: 25 mm
Local signalling: Positive contact indication
Neutral protection setting: Without protection
Earth-leakage protection: Without
Dimensions (HxWxD): 13 cm x 7.5 cm x 6 cm
Standards: GB/T 14048.2, EN/IEC 60947-1, EN/IEC 60947-2, JIS C8201-2-2
IP degree of protection: IP20
IK degree of protection: IK07
Operating ambient temperature: -25…70 °C
Storage ambient temperature: -35…85 °C
Packaging Unit 1: 1 piece (9.0 cm x 7.5 cm x 13.5 cm, 800 g)
Packaging Unit 2: 12 pieces (15.0 cm x 30.0 cm x 40.0 cm, 10.01 kg)
Packaging Unit 3: 192 pieces (75.0 cm x 80.0 cm x 60.0 cm, 162.1 kg)
Warranty: 18 months
Environmental information: Total lifecycle Carbon footprint is 121 CO2 equivalent emissions. Packaging made with minimum 70% recycled cardboard. Recyclability potential is 43%. No take-back program available. RoHS and REACh compliant.
Customs Tariff Code: 85362010
