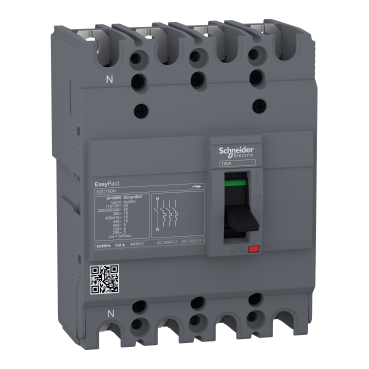

EZC100N4060 Circuit Breaker – EasyPact EZC100N
This is a 50A circuit breaker for EasyPact EZC100E. This product can operate below rated operational voltage (Ue) 550 VAC at 50/60 Hz and 250 V DC. It is designed with a 4 poles frame with detection on 3 poles, equipped with TM-D thermal-magnetic trip unit for thermal-magnetic protection. It complies with standard IEC60947 and CE certification, including certifications from independent labs (KEMA, ASEFA, TUV) or third-party Tilva.
The device is certified for operation in pollution degree 3 environment as defined by IEC60947 and passes tests for extreme atmospheric conditions. It can be mounted vertically or horizontally in a metal enclosure with safety against risk by padlocking. Slots on the series are used for indication or voltage release auxiliaries positioning behind the front cover of the circuit breaker.
Range of product: EasyPact
Product or component type: Circuit breaker
Device short name: Easypact EZC100N
Device application: Distribution
Poles description: 4P
Protected poles description: 3t
Network type: DC, AC
Network frequency: 50/60 Hz
Rated current: 60 A at 40 °C
Rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
Rated operational voltage: 550 V AC 50/60 Hz and 250 V DC conforming to IEC 60947-2
Breaking capacity code: N
Breaking capacity: 10 kA Icu at 440 V AC, 25 kA Icu at 110-130 V AC and 220-240 V AC, 5 kA Icu at 125 V DC 1P, 5 kA Icu at 250 V DC 2P, 5 kA Icu at 550 V AC, 15 kA Icu at 415 V AC, 18 kA Icu at 380-400 V AC
Rated service breaking capacity: 5 kA at 440 V AC, 2.5 kA at 125 V DC, 2.5 kA at 250 V DC, 2.5 kA at 550 V AC, 12.5 kA at 220-240 V AC, 12.5 kA at 110-130 V AC, 9 kA at 380-400 V AC, 7.5 kA at 415 V AC
Suitability for isolation: Yes
Utilisation category: Category A
Trip unit name: TM-D
Trip unit technology: Thermal-magnetic
Trip unit rating: 60 A at 50 °C
Protection type: Short-circuit protection, Overload protection
Pollution degree: 3 conforming to IEC 60947
Main dimensions: Height 13 cm, Width 10 cm, Depth 6 cm
Control type: Toggle
Mounting mode: Fixed
Mounting support: Backplate
Connection pitch: 2.5 cm
Mechanical durability: 13000 cycles
Local signalling: Positive contact indication
Ambient air temperature for operation: -25 to 70 °C
Ambient air temperature for storage: -35 to 85 °C
Protection degrees: IP20, IK07
Packaging dimensions package 1: Height 9 cm, Width 13.5 cm, Length 10.5 cm, Weight 1.011 kg
Packaging dimensions package 2: Height 15 cm, Width 30 cm, Length 40 cm, Weight 9.499 kg
Packaging dimensions package 3: Height 80 cm, Width 120 cm, Length 288 cm, Weight 301.536 kg
Warranty: 18 months
Environmental info: Total lifecycle carbon footprint 276. Packaging made with recycled cardboard (minimum 70% recycled content, 50% in US). Packaging without single-use plastic minimized. EU RoHS compliant. No specific recycling operations needed. Not in take-back program.
Compliance standards: JIS C8201-2-2, EN/IEC 60947-1, EN/IEC 60947-2, GB/T 14048.2
Customs Tariff Code: 85362090
