Description

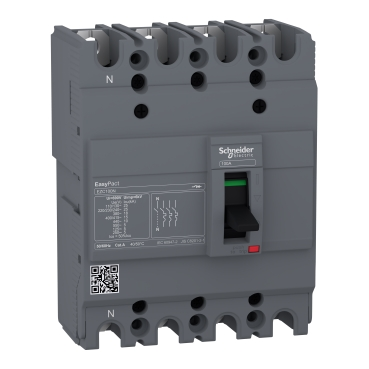

Product: EZC100N4100 – circuit breaker Easypact EZC100N – TMD – 100 A – 4 poles 3d
Brand: Schneider Electric
Range: EasyPact EZC
Type: Circuit breaker
Device Short Name: Easypact EZC100N
Application: Distribution
Poles: 4P, with 3 protected poles
Network Type: AC and DC
Network Frequency: 50/60 Hz
Rated Current [In]: 100 A at 40 °C
Rated Insulation Voltage [Ui]: 690 V AC 50/60 Hz
Rated Impulse Withstand Voltage [Uimp]: 6 kV
Rated Operational Voltage [Ue]: 550 V AC 50/60 Hz, 250 V DC
Breaking Capacity Code: N
Breaking Capacity (Icu): 10 kA at 440 V AC; 25 kA at 110…130 V AC; 25 kA at 220…240 V AC; 5 kA at 125 V DC 1P; 5 kA at 250 V DC 2P; 5 kA at 550 V AC; 15 kA at 415 V AC; 18 kA at 380…400 V AC
Rated Service Breaking Capacity [Ics]: 5 kA at 440 V AC; 2.5 kA at 125 V DC; 2.5 kA at 250 V DC; 2.5 kA at 550 V AC; 12.5 kA at 220…240 V AC; 12.5 kA at 110…130 V AC; 9 kA at 380…400 V AC; 7.5 kA at 415 V AC
Suitability for Isolation: Yes
Utilisation Category: Category A
Trip Unit: TM-D thermal-magnetic trip unit rated 100 A at 50 °C
Protection Types: Overload protection, Short-circuit protection
Pollution Degree: 3
Control: Toggle
Mounting: Fixed, on backplate
Connection: Front (upside and downside)
Mechanical Durability: 13000 cycles
Connection Pitch: 25 mm
Local Signalling: Positive contact indication
Neutral Protection Setting: None
Earth Leakage Protection: None
Dimensions: Height 13 cm, Width 10 cm, Depth 6 cm
Standards: EN/IEC 60947-2, JIS C8201-2-2, EN/IEC 60947-1, GB/T 14048.2
IP Degree of Protection: IP20
IK Degree of Protection: IK07
Environmental Conditions: Operating temperature -25 to 70 °C, Storage temperature -35 to 85 °C
Packaging Unit 1: 1 piece, dimensions 9.5 cm x 11 cm x 14 cm, weight 1.006 kg
Packaging Unit 2: 9 pieces, dimensions 15 cm x 30 cm x 40 cm, weight 9.442 kg
Warranty: 12 months
Customs Tariff Code: 85362010
