Description
Product Overview
Name: EZC630N3600N
Range: EasyPact EZC

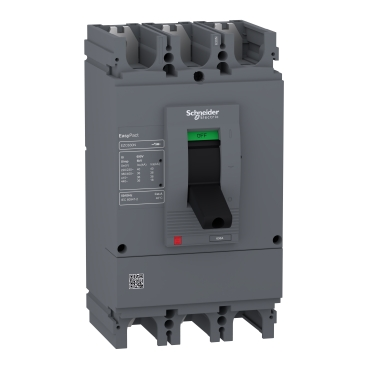

Description: EasyPact EZC630N is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price. The product dimensions are 14 cm x 25.5 cm x 11 cm with a net weight of 6.4 kg.
Electrical Characteristics
Rated current (In): 630 A at 40 °C
Rated insulation voltage (Ui): 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage (Uimp): 6 kV conforming to IEC 60947-2
Rated operational voltage (Ue): 440 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity (Icu): 36 kA at 440 V AC 50/60 Hz, 40 kA at 220/230 V AC 50/60 Hz, 36 kA at 380 V AC 50/60 Hz, 36 kA at 400/415 V AC 50/60 Hz
Rated service breaking capacity (Ics): 18 kA at 440 V AC 50/60 Hz, 40 kA at 220/230 V AC 50/60 Hz, 36 kA at 380 V AC 50/60 Hz, 36 kA at 400/415 V AC 50/60 Hz
Trip unit rating: 600 A at 50 °C
Trip unit technology: Thermal-magnetic
Protection type: Overload protection and Short-circuit protection
Magnetic tripping current: 5000 A
Mechanical and Installation Data
Poles description: 3P
Control type: Toggle
Mounting mode: Fixed
Mounting support: Backplate
Connection pitch: 4.5 cm
Connection orientation: Front on both upside and downside
Mechanical durability: 10000 cycles
Electrical durability: Category A: 3000 cycles at 415 V AC 50/60 Hz conforming to IEC 60947-2
Local signalling: Positive contact indication
Contact position indicator: Yes
Neutral protection setting: Without protection
Long time pick-up adjustment type Ir: Fixed
Long time delay adjustment type: Fixed
Earth-leakage protection: Without
Standards and Environmental
Standards: EN/IEC 60947-2, GB/T 14048.2, JIS C8201-2-2, EN/IEC 60947-1
Degree of protection: IP20, IK07
Ambient air temperature for operation: -25 to 70 °C
Ambient air temperature for storage: -35 to 85 °C
Colour: Black
Packaging
Package 1: Height 15 cm, Width 16 cm, Length 29 cm, Weight 5.339 kg, Units 1, Type PCE
Package 2: Height 30 cm, Width 40 cm, Length 60 cm, Weight 16.783 kg, Units 3, Type S04
Warranty and Compliance
Warranty: 18 months
Customs Tariff Code: 85362000
