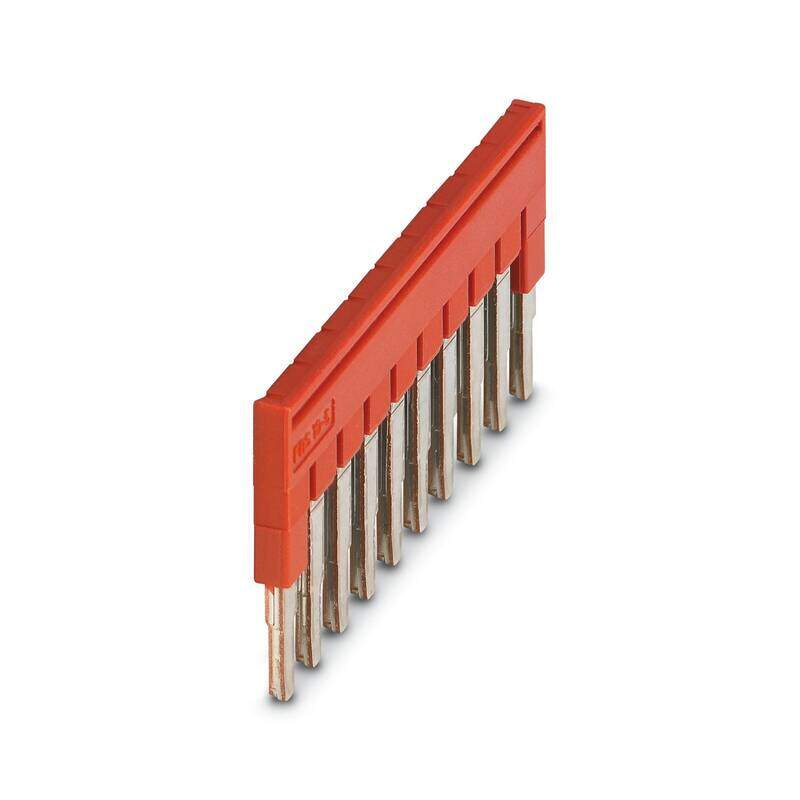

Product Name: FBS 10-5 – Plug-in bridge
Article Number: 3030213
Description: Plug-in bridge, pitch: 5.2 mm, number of positions: 10, nominal current: 24 A, length: 23 mm, color: red
Technical Data
Product properties
Number of positions: 10
Pitch: 5.2 mm
Electrical properties
Maximum load current: 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Dimensions
Width: 50.6 mm
Height: 22.7 mm
Depth: 3 mm
Length: 22.7 mm
Material specifications
Color: red (RAL 3001)
Material: Copper
Flammability rating according to UL 94: V0
Insulating material: PA
Environmental and real-life conditions
Ambient temperature (operation): -60 °C … 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport): -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly): -5 °C … 70 °C
Ambient temperature (actuation): -5 °C … 70 °C
Permissible humidity (operation): 20 % … 90 %
Permissible humidity (storage/transport): 30 % … 70 %
Mounting
Mounting type: Plug-in mounting
Commercial data
GTIN: 4017918188542
Packing unit: 10 pc
Minimum order quantity: 10 pc
Weight per piece (including packing): 8.75 g
Weight per piece (excluding packing): 8.42 g
Customs tariff number: 85366990
Country of origin: DE
