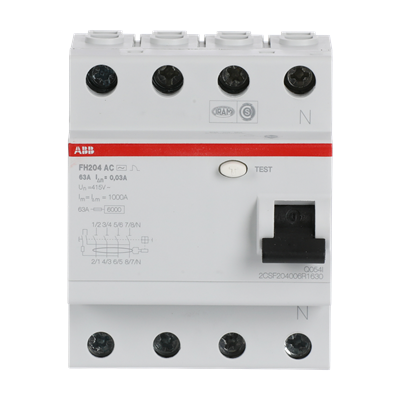

FH204 AC-63/0.03 Residual Current Circuit Breaker
Product ID: 2CSF204006R1630
Catalog Description: Residual Current Circuit Breaker FH200 – 4P – 30 mA – 63 A – Type AC
The RCCBs FH200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous AC and A types is particularly suitable for installation in domestic applications.
Electrical Specifications:
Type of Residual Current: AC
Rated Service Short-Circuit Breaking Capacity (Ics): 6 kA
Maximum Surge Current: 0.25 kA
Leakage Current Type: AC
Electrical Endurance: 10000 cycles
Mechanical Endurance: 20000 cycles
Number of Poles: 4
Number of Modular Spacings per DIN Rail: 4
Operating Characteristic: Instantaneous
Position of Neutral Terminals: Right
Rated Voltage (Ur): 230/400 V
Rated Operational Voltage: According to IEC 60898-1 400 V
Rated Insulation Voltage (Ui): According to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp): 4 kV
Input Voltage Type: AC
Rated Current (In): 63 A
Rated Residual Current: 30 mA
Rated Conditional Short-Circuit Current (Inc): 6 kA
Rated Frequency: 50 Hz
Power Loss: Total 17.6 W
Design and Material:
RAL Number: RAL 7035 – Light Grey
Color: Grey
Number of Modules: 4
Rated Cross-Section: Multi-Wired 10 to 25 mm² and Solid-Core 25 mm²
Environmental and Compliance Information:
RoHS Declaration: EU Declaration of Conformity FH200
RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date: 20211115
REACH Declaration: Reach Declaration – ABB S.p.A. Vittuone
REACH Information: Contains substances greater than 0.1 mass %
REACH Date: 20240429
Conflict Minerals Reporting Template: Provided
SCIP: 719d39e9-c62c-4c41-a6dc-53de2a11e8ea Italy
WEEE Category: Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C/B2B: Business To Consumer
Ambient Air Temperature (Operation): -5 to 40 °C
Degree of Protection: IP2X
Pollution Degree: 2
Dimensions:
Width: 7.0 cm
Height: 8.5 cm
Depth: 6.9 cm
Weight: 0.38 kg
Built-In Depth: 6.9 cm
Mounting Type: DIN-Rail
Package: Box 1 Piece, Gross Weight 0.415 kg
Customs Tariff Code: 85362090
