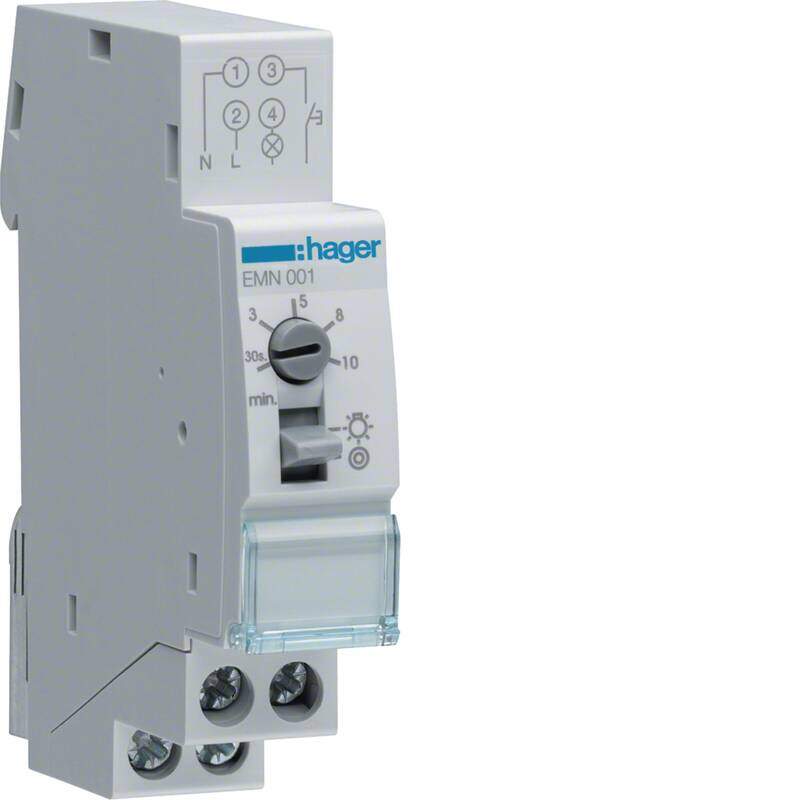

Description
Technical characteristics
Architecture
-
Fixing modeDin-Rail
Functions
-
Slide switchwith slide switch for permanent on/automatic
Configuration
-
Switch modeNO contact
-
Number of modules1
Main electrical features
-
Rated operational voltage Ue230 V
-
Frequency50/60
Voltage
-
Command voltage AC230 V
-
Operating voltage230 V~
Electric current
-
Acceptable current rating with AC116 A
-
Quiescent current100 mA
-
Rated current16 A
Dimensions
-
Depth of installed product64 mm
-
Length64 mm
-
Width of installed product17.5 mm
-
Width of rail mounted device (RMD)1 modules
Power
-
Max. power with fluo uncompensated lamps3600 VA
-
Power consumed1 VA
-
Total power loss under IN2 W
-
Power dissipation per coil0.25 W
Power supply
-
Supply voltage230 V
Fluorescent bulbs control
-
Fluorescent lampsmax. 3600 VA
-
Max. power with fluorescent parallel lamps1000 VA
-
Fluorescent lamps parallel compensated1000 VA
Incandescent bulbs control
-
Max. power with incandescent lamps2300 W
-
230 V incandescent lamps and halogen lampsmax. 2300 W
Installation, mounting
-
Mounting typedin-Rail
-
Installation modefor mounting on DIN rail
Connection
-
Connection cross-sect. flexible conductor1 / 6mm²
-
Connection cross-sect. rigid cable1,5 / 10mm²
-
Conductor cross-section (flexible)1…6 mm²
-
Conductor cross-section (rigid)1.5…10 mm²
-
Connection type3 and 4 wires
-
Number of contacts1
-
Type of contacts1NO
-
Type of connectionwith screw terminals
-
Connectionfor 3 and 4-conductor circuit (automatic detection)
-
Type of connectionwith screw
Settings
-
Time delayed range30s / 10min
-
Delay time, adjustable30 s…10 mn
Equipment
-
low noisevery low noise
Safety
-
Protection index IPIP20
Use conditions
-
Operating temperature-10…55 °C
-
Storage/transport temperature-20…60 °C
