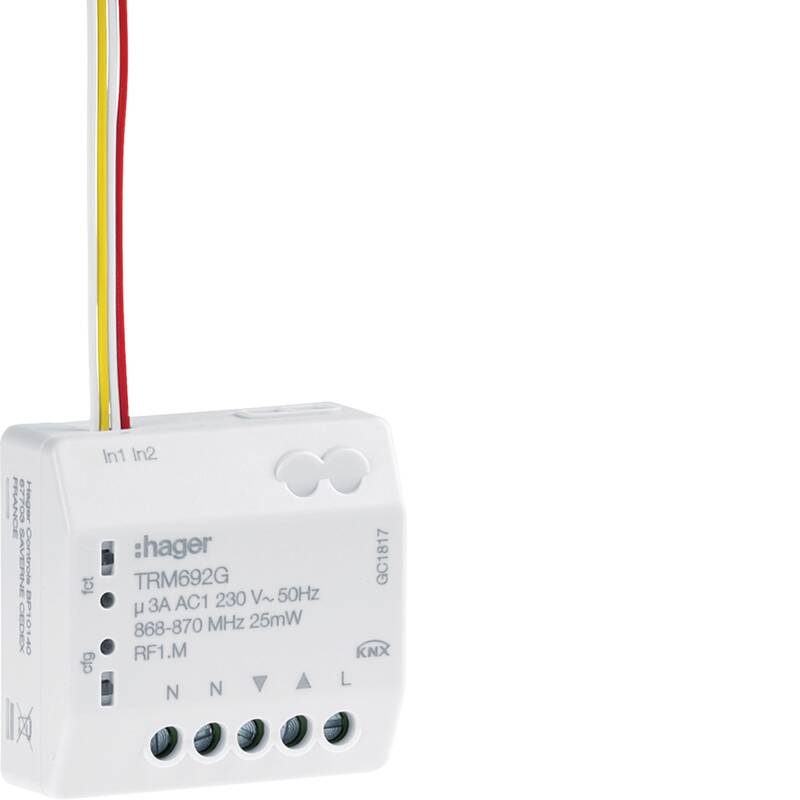

Description
Technical characteristics
Architecture
-
Bus systemyes
-
Number of blinds/shutters outputs1
Functions
-
Bus module detachableNo
-
Functioneasy additional functions: +6 scenes ; reset function (to factory setting) ; Repeat function can be activated to increase the radio range
-
Light scenesscene saving lockable,scene opening via KNX radio appliances
-
Quicklink functionsquicklink functions: blind, 2 scenes, forced control, up/down push-button
Configuration
-
Switch modewith 2 mechanically and electrically mutually-locked relay contacts
-
Number of modules0
Controls and indicators
-
Indicator lampyes
-
Operationwith manual operation up/down
-
Button / push-buttonwith configuration and function button
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
Main electrical features
-
Type of supply voltageAC
-
Frequency50
Voltage
-
System supply voltage230V AC
Electric current
-
Number of entry circuits2
-
Maximum switching current3 A
Dimensions
-
Height20 mm
Frequency
-
Radio reception frequency868.3 MHz
Power
-
Contact rating with 230 V in AC1690 W
-
Total power loss under IN450 mW
-
Power dissipation per coil150 mW
LED control
-
LEDwith configuration and function LEDs,with control LED (relay closed)
Connection
-
Connection cross-sect. flexible conductor0,5 / 1,5mm²
-
Connection cross-sect. rigid cable0,5 / 2,5mm²
-
Number of contacts1
-
Type of connectionwith screw-in lift terminals
-
Bus connectionintegration in the KNX radio/TP gateway, surface-mounted, into the KNX TP system
-
Type of connectionwith screw
Settings
-
Supported configuration modesquicklink
-
Lamella adjustment on signal duration< 1 s
-
Programmingtoolless quicklink configuration using buttons and LED display
Equipment
-
Number of quicklink linksmax. 20 transmitter/receiver
-
Self-retaining for 2 min on signal length> 1 s
-
Transmitter duty cycle1
-
Change-over time for change of direction< 0.6 s
Use conditions
-
Operating temperature-10…50 °C
-
Storage/transport temperature-20…70 °C
-
Energy-savinglow intrinsic energy requirement
-
Relative humidity (without condensation)0…65 % (without condensation)
Identification
-
Application, usageKNX radio – actuators
-
Product familyproduct family: output
-
Device familyTRM
-
Main design lineElectronics platform
-
Search wordsKNX radio;radio UP actuator;radio UP blind actuator;pill;radio pill;KNX radio pill;actuator for UP socket;UP;KNX UP;combi
-
Secondary design line(s)Berker.Net
