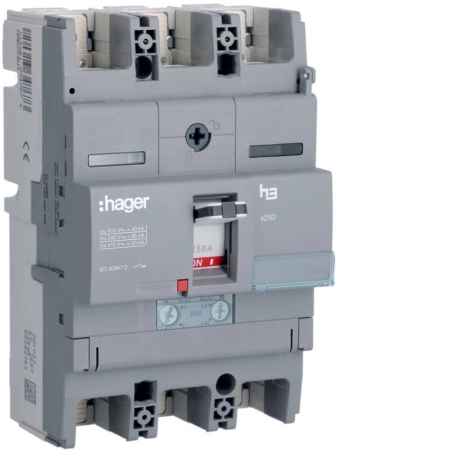

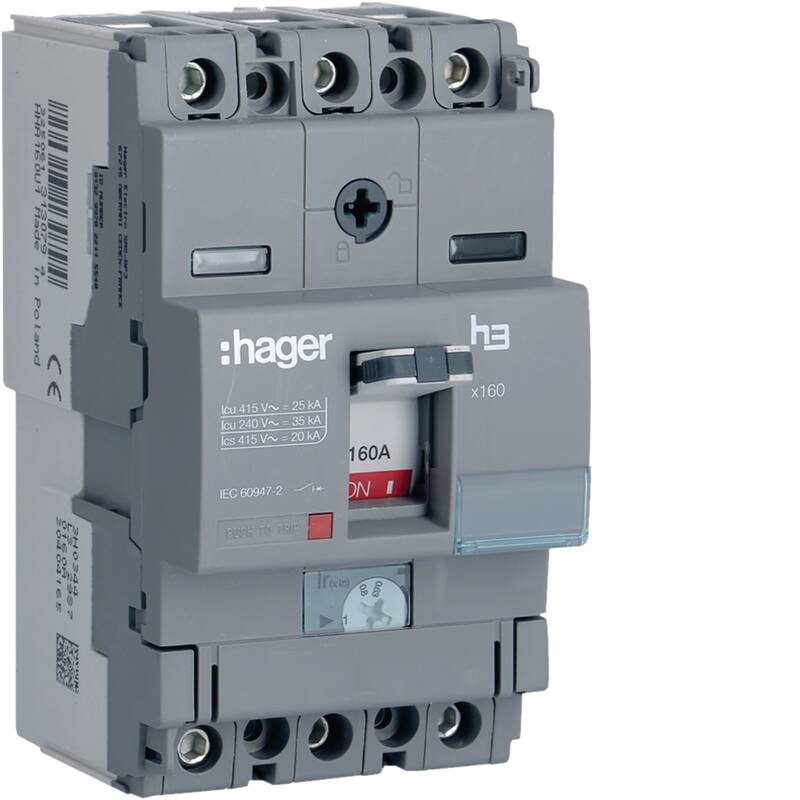

Description
-
Architecture
-
Neutral position
- without neutral
-
Number of protected poles
- 3
-
Number of poles
- 3 P
-
Type of pole
- 3P3D
-
-
Functions
-
Trip Unit
- TM A/F
-
Concurrently switching N-neutral
-
-
Controls and indicators
-
Motor drive integrated
-
-
Main electrical features
-
Rated operational voltage Ue
- 220 / 415 V
-
Frequency
- 50/60 Hz
-
-
Voltage
-
Rated insulation voltage
- 690 V
-
Rated impulse withstand voltage
- 8 kV
-
With under voltage release
-
-
Electric current
-
Rated current
- 160 A
-
Thermal protection nob setting xIN
- 0,63 / 0,8 / 1
-
Rating current 30°C according to IEC 60947
- 174,8 A
-
Rating current 35°C according to IEC 60947
- 171,2 A
-
Rating current 40°C according to IEC 60947
- 167,5 A
-
Rating current 45°C according to IEC 60947
- 163,8 A
-
Rating current 50°C according to IEC 60947
- 160 A
-
Rating current 55°C according to IEC 60947
- 156 A
-
Rating current 60°C according to IEC 60947
- 152 A
-
Rating current 65°C according to IEC 60947
- 147,8 A
-
Rating current 70°C according to IEC 60947
- 143,6 A
-
Rated ultimate short-circuit breaking capacity Icu under 230V AC IEC 60947-2
- 35 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240V AC IEC 60947-2
- 35 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400V AC IEC 60947-2
- 25 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415V AC IEC 60947-2
- 25 kA
-
Range of the thermal adjustment
- 100 / 125 / 160 A
-
Rated ultimate short-circuit breaking capacity Icu under 380V AC IEC 60947-2
- 25 kA
-
-
Dimensions
-
Depth of installed product
- 68 mm
-
Height of installed product
- 130 mm
-
Width of installed product
- 75 mm
-
-
Frequency
-
Frequency
- 50 to 60 Hz
-
-
Power
-
Power loss per pole at 0.63*In
- 5,7 W
-
Power loss per pole at 0.8*In
- 8,9 W
-
Total power loss at 0.63*In
- 17,1 W
-
Total power loss at 0.8*In
- 26,7 W
-
Total power loss under IN
- 43,8 W
-
Power loss per pole at In
- 14,6 W
-
-
Endurance
-
Electric endurance in number of cycles
- 1000
-
Number of mechanical operations
- 4000
-
-
Connection
-
Type of connection
- with screw
-
-
Settings
-
Range of the magnetic adjustment
- 1600 A
-
-
Equipment
-
Number of auxiliary contacts as normally closed contact
- 0
-
Number of auxiliary contacts as normally open contact
- 0
-
Number of auxiliary contacts as change-over contact
- 0
-
Can be accessorized
-
-
Standards
-
Standard text
- IEC 60947-2
-
European directive WEEE
- concerned
-
-
Safety
-
Protection index IP
- IP4X
-
-
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-2
- 3
-
Altitude
- 2000 m
-
-
temperatur
-
Temperature of calibration
-
