Description

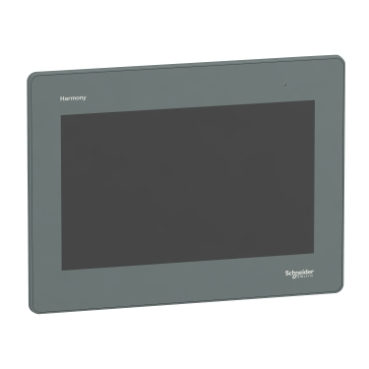

HMIGXU5512
Range: Easy Harmony GXU
Description: 10.1 inch widescreen, Universal model, 2 serial ports, 1 Ethernet port, embedded RTC. This advanced touchscreen panel features a 10.1 inch LCD screen supporting 800 x 480 pixels WVGA resolution. It offers an internal memory of 48 MB for application, internal DDR of 128 MB and internal backup memory of 128 kB. The display supports 65536 colours with a backlight lifespan of 20000 hours. It is a touchscreen panel with a rated supply voltage of 24 V DC.
Integrated Connections: USB type mini B; COM1 serial link: 9-way male SUB-D connector, RS232C; COM2 serial link: 9-way male SUB-D connector, RS422/RS485; USB type A; Ethernet 10/100BASE-TX.
Cut-out Dimensions: Width 25.5 cm x Height 18.5 cm, with a corner radius of 0.1 to 0.5 cm and maximum recess 0.3 cm.
Quality Labels: CE certified.
Operating Temperature: 0 to 50 °C.
Storage Temperature: -20 to 60 °C.
IP Degree of Protection: IP65 (front panel).
Packaging Dimensions and Weights:
Package 1 – Height: 9.4 cm, Width: 23.9 cm, Length: 32.4 cm, Weight: 1.5 kg.
Package 2 – Height: 30 cm, Width: 40 cm, Length: 60 cm, Weight: 11.398 kg.
Package 3 – Height: 95 cm, Width: 80 cm, Length: 120 cm, Weight: 145.776 kg.
Customs Tariff Code: 8471.70.00
