Description

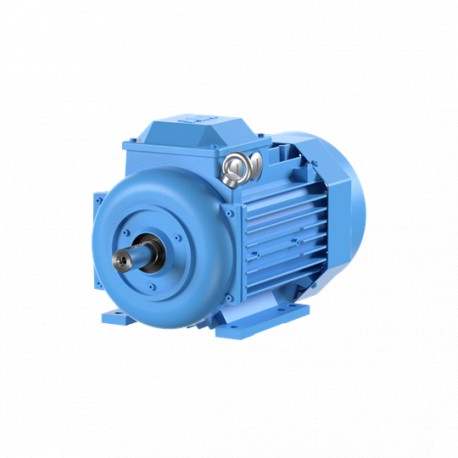

Product Name: 3-Phase squirrel cage motor
Reference: M3BP 90 SLB 4
Code: 3GBP092322-ADB
Manufacturer: ABB
Description: Cast iron motor for Process Performance 1.1kW 400/690V, IE2, 4 Poles, mounting B3 (feet)
Category: Motors for process industry M3BP
Customs Tariff Code: 85015220
Units per package: 1
Electrical Data:
Connection Y, 50 Hz, 690 V, Power 1.10 kW, Speed 1435 r/min, Current 1.37 A, Power Factor 0.800, Efficiency 81.40 %, Torque 7.30 N·m, IS/IN 6.50
Connection D, 50 Hz, 400 V, Power 1.10 kW, Speed 1435 r/min, Current 2.36 A, Power Factor 0.800, Efficiency 81.40 %, Torque 7.30 N·m, IS/IN 6.50
Connection D, 60 Hz, 460 V, Power 1.10 kW, Speed 1740 r/min, Current 2.11 A, Power Factor 0.770, Efficiency 84.00 %, Torque 6.00 N·m, IS/IN 7.50
Frame Material: Cast Iron
Frame Size: 90
Frequency: 50 Hz
Gross Weight: 28 kg
Net Weight: 25 kg
Net Dimensions (cm): Depth / Length 35.7, Height 21.9, Width 17.7
Ambient Temperature: 40 °C
Altitude: 1000 m
Bearing: 6205-2Z/C3
Bearing NDE: 6204-2Z/C3
Connection Configuration: D
Country of Origin: Spain (ES), Finland (FI), China (CN)
Direction of Rotation: Both sides
IC Class: IC411
IE Class Data 50 Hz: IE2 with full load 81.4 %, partial load 75 % = 82.0 %, partial load 50 % = 80.1 %
IE Class Data 60 Hz: IE2 with full load 84.0 %, partial load 75 % = 83.6 %, partial load 50 % = 81.0 %
IM Class: IMB3 IM1001
Input Voltage: 400 V
Insulation Class: ICLF
IP Class: IP55
Lubrication: For life
Made To Order: No
Medium Description: 1.1kW, 4 Poles, Frame Size 90, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting
Minimum Order Quantity: 1 piece
Number of Poles: 4
Output Power: 1.1 kW
Product Type: 3BP2__M3BP_IE2_CI
Service Factor: 1.00
Short Description: 1.1kW, 4P, Frame Size 90, 3PH, 400V, 50Hz, IP55, IMB3/IM1001
Standards: IEC 60034-1
Starting of Motor: Direct Online
Terminator Box Location: Top
Type of Duty: S1
UNSPSC: 26101100
Voltage Code: D
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
