Description

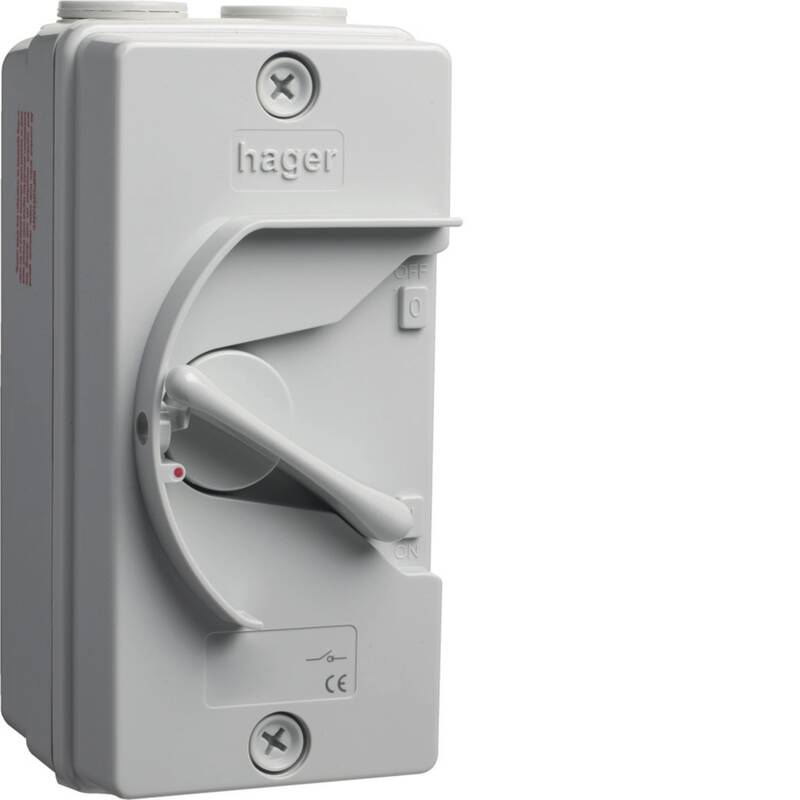

IP66 40A 2P ISOLATOR – JG240IN
EAN-Nr.: 3250617509701
Packaging: 1 piece
Technical characteristics
Architecture
Number of poles: 2
Type of pole: 1P+N
Electric current
Rated current: 40 A
Acceptable current rating AC21: 40 A
Acceptable current rating AC21 category A: 40 A
Rated short-time withstand current Icw IEC 60947: 0.48 kA
Acceptable current rating AC22 category A: 40 A
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-3: 0.48 kA
Acceptable current rating AC23 category A: 40 A
Rated short-time withstand current Icw t=1 S 220 – 240 V AC according to IEC 60947 – 3: 0.48 kA
Voltage
Rated operational voltage Ue: 250 – 250 V
Rated insulation voltage Ui: 440 V
Installation, mounting
Nominal tightening torque: 2.50 – 2.50 Nm
Dimensions
Height: 170 mm
Width: 84 mm
Depth: 87 mm
Power
Rated operational power under 400 V AC AC23: 6,500 W
Safety
Ingress Protection (IP) class: IP66
Use conditions
Operating temperature: -5 – 40 °C
Connection
Cross-section rigid conductor: 6 – 10 mm²
Frequency
Frequency: 50 – 60 Hz
