Description

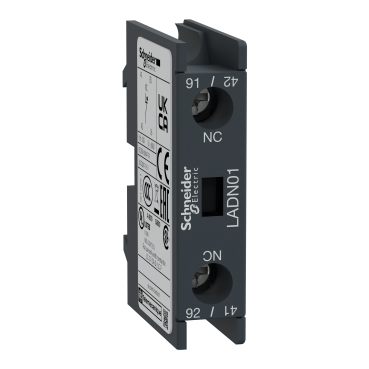

LADN01 – Auxiliary contact block, TeSys Deca, 1NC, front mounting, screw clamp terminals
Description: TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F. It provides 1NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. LADN01 is a Schneider Electric add-on auxiliary contact block for TeSys Deca and TeSys F contactors. Multi standards certified (IEC, UL, CSA, CCC, EAC). It can be used in safety applications thanks to its NC certified mirror contact. Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Add-on block with 1NC auxiliary contact, with instantaneous operation. Suitable to be included in the control of safety systems thanks to its NC certified mirror contact. High electrical durability, several millions of operating cycles in AC-14/AC-15/DC-13 according conditions. Mounting by clip-on on front of all TeSys Deca and TeSys F contactors.
Range: TeSys Deca Contactors – Available up to 150A for AC3 and 200A for AC1 applications
Type: Auxiliary contact block
Device short name: LADN
Range compatibility: TeSys Deca LC1D80/95 3P, TeSys Deca LC1D80 4P, TeSys Deca LC1D40008, TeSys Deca LC1D65008, TeSys F LC1F, TeSys Deca LC1D115
Mounting location: Front
Pole contact composition: 1 NC
Contacts operation: Instantaneous
Rated operational voltage Ue: 690 V AC 25…400 Hz
Rated operational current Ie: 6 at 120 V AC-15, 1.04 at 690 V AC-15, 0.55 at 125 V DC-13, 0.1 at 600 V DC-13
Rated insulation voltage Ui: 690 V IEC 60947-5-1, 600 V UL, 600 V CSA
Conventional free air thermal current Ith: 10 (at 60 °C)
Standards: EN/IEC 60947-5-1, GB/T 14048.5, EN 50012, UL 60947-5-1, CSA C22.2 No 60947-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ
Certifications: CB Scheme, UL, CSA, CCC, EAC, UKCA
Irms rated making capacity: 140 A AC, 250 A DC
Permissible short-time rating: 100 A 1 s, 120 A 500 ms, 140 A 100 ms
Protection type: GG fuse 10 A
Mechanical durability: 30 million cycles
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance: > 10 MOhm
Connections – terminals: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) flexible with cable end, screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) flexible without cable end, screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible with cable end, screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) flexible without cable end, screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) rigid without cable end, screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) rigid without cable end
Tightening torque: 1.7 N.m flat Ø 6 mm, 1.7 N.m Philips No 2, 1.7 N.m Pozidriv No 2
Dimensions (HxWxD): 4.8 cm x 1.3 cm x 3.5 cm
Net weight: 0.02 kg
Color: Dark grey
Environmental characteristic: Normal environment
IP degree of protection: IP20 conforming to IEC 60529
Protective treatment: TH IEC 60068
Ambient air temperature for storage: -60 to 80 °C
Ambient air temperature for operation: -5 to 60 °C
Operating altitude: 3000 m
Customs Tariff Code: US10I1222341
Discount Schedule: 0I12
GTIN: 3389110383720
Returnability: Yes
Country of origin: CZ
Packaging dimensions and weight: Package 1 – Height: 2.7 cm, Width: 4.2 cm, Length: 5.0 cm, Weight: 19 g; Package 2 – Height: 15 cm, Width: 15 cm, Length: 40 cm, Weight: 1.778 kg, containing 84 units
Warranty: 18 months
Carbon footprint: 3 kg CO2 eq total life cycle
Packaging made with recycled cardboard: Yes
Recyclability potential: 39 %
Take-back program: No
