Description

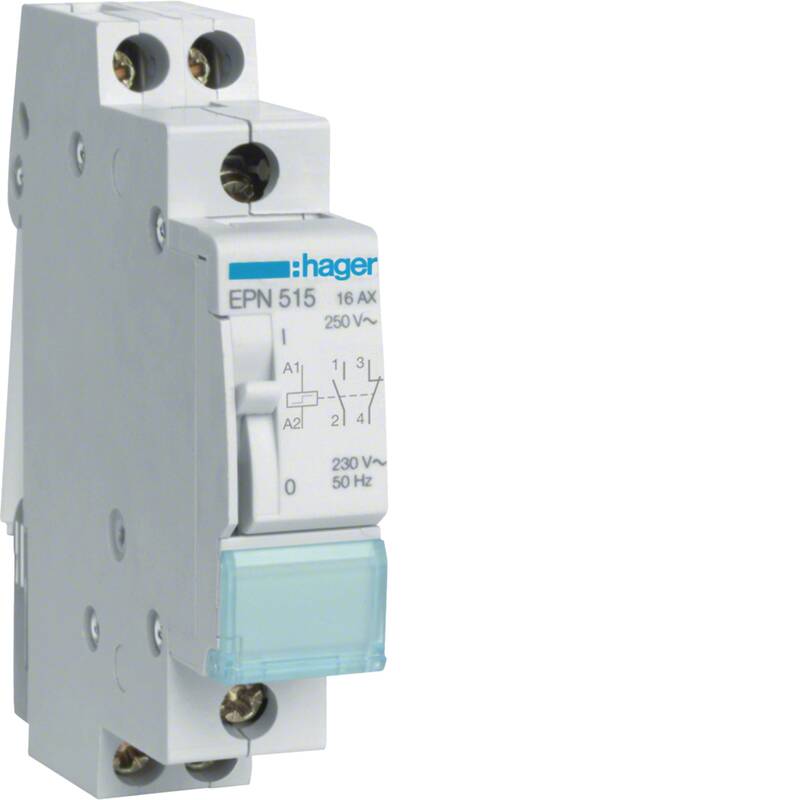

Latching relay 1NC+1NO 230V EPN515
EAN-Nr.: 3250612369577
Packaging: 1 piece
Technical characteristics
Electric current
Rated current: 16 A
Quiescent current: 6 mA
Acceptable current rating AC1: 16 A
Capacity
Number of modules: 1
Connection
Type of contacts: 1NC+1NO
Cross-section flexible conductor: 1 – 6 mm²
Cross-section rigid conductor: 1.5 – 10 mm²
Number of contacts: 2
Voltage
Command voltage AC: 230 – 230 V
Command voltage DC: 110 – 110 V
Command voltage 2: 110 – 110 V
Command voltage 1: 230 – 230 V
Rated insulation voltage Ui: 250 V
Rated operational voltage Ue: 250 – 250 V
Frequency
Frequency: 50 – 60 Hz
Use conditions
Operating temperature: -5 – 40 °C
Storage/transport temperature: -40 – 80 °C
Connectivity
Type of connection: Screw terminal
Power
Total power loss under IN: 1.20 W
Inrush power absorbed: 25 VA
Dimensions
Height: 83 mm
Width: 17.50 mm
Depth: 63 mm
Lighting
Max. load fluorescent lamp: 800 VA
Max. load fluorescent lamp parallel compensated: 900 VA
Equipment
Number of NO contacts: 1
Number of NC contacts: 1
Environmental value
RoHS conform: Yes
REACh-SVHC free: Yes
