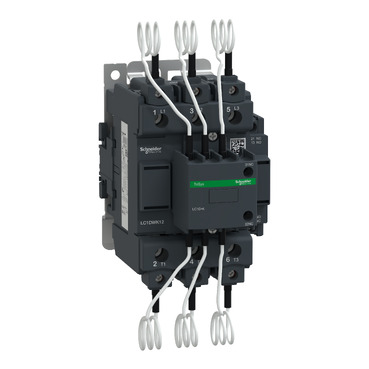

LC1DWK12M7 – Capacitor contactor, Tesys Deca
Range: TeSys Deca Contactors
Control circuit voltage (Uc): 220 V AC 50/60 Hz
Reactive power rating: 35 kvar at 230 V AC 50 Hz, 63 kvar at 400 V AC 50 Hz, 67 kvar at 440 V AC 50 Hz, 104 kvar at 690 V AC 50 Hz, 30 kvar at 230 V AC 60 Hz, 60 kvar at 460 V AC 60 Hz, 80 kvar at 575 V AC 60 Hz
Utilisation category: AC-6b
Poles description: 3P
Power pole contact composition: 3 NO
Control circuit type: AC 50/60 Hz
Auxiliary contact composition: 1 NO + 2 NC instantaneous
Electrical durability: 300000 cycles at 400 V, 200000 cycles at 690 V
Mounting support: DIN rail, Plate
Standards: EN/IEC 60947-1, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
Product certifications: IECEE CB Scheme, UL, CSA, UKCA
Connections – terminals: Control circuit: screw clamp terminals 1 and 2, 1 to 4 mm² solid and flexible without and with cable end; Power circuit: connectors 1 and 2, 4 to 50 mm² solid and flexible without and with cable end
Tightening torque: Power circuit 9 N.m connector, Control circuit 1.7 N.m screw clamp terminals
Maximum operating rate: 100 cyc/h
Auxiliary contacts type: Mechanically linked 1 NO + 2 NC IEC 60947-5-1
IP degree of protection: IP20 front face IEC 60529
Ambient air temperature for operation: -5 to 60 °C
Ambient air temperature for storage: -60 to 80 °C
Operating altitude: 0 to 3000 m
Dimensions (HxWxD): 18 x 8.5 x 15.4 cm
Net weight: 1.65 kg
Country of origin: CZ
Customs Tariff Code: US10I1222359
Packaging unit 1 (PCE): Dimensions 19 x 13.2 x 17 cm, Weight 1.786 kg
Packaging unit 2 (S06): 48 units, Dimensions 75 x 60 x 80 cm, Weight 95.368 kg
Warranty: 18 months
Environmental data: Carbon footprint 1 kg CO2 eq total life cycle, Packaging made with minimum 70% recycled cardboard, Recyclability potential 67%
