Description

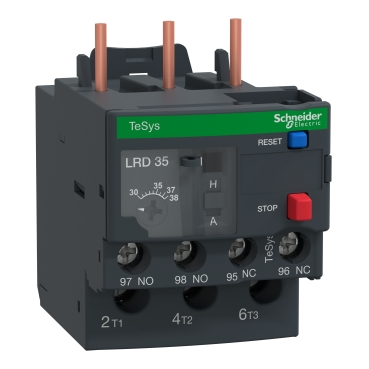

LRD35 – TeSys Deca Thermal Overload Relay
Range: TeSys Deca
Type: Differential thermal overload relay designed for motor protection.
Compatibility: Compatible with LC1D32, LC1D38 contactors.
Network Type: Supports DC and AC circuits.
Thermal Overload Class: Class 10A IEC 60947-4-1.
Thermal Protection Adjustment Range: 30 to 38 A.
Rated Insulation Voltage [Ui]: Power circuit 600 V CSA, 600 V UL, 690 V IEC 60947-4-1.
Network Frequency: 0 to 400 Hz.
Mounting Support: Plate and Rail with specific accessories, under contactor.
Tripping Threshold: 1.14 ± 0.06 times Ir IEC 60947-4-1.
Auxiliary Contact Composition: 1 NO + 1 NC.
Conventional Free Air Thermal Current [Ith]: 5 A signaling circuit.
Permissible Currents: 1.5 A 240 V AC-15 signaling circuit, 0.1 A 250 V DC-13 signaling circuit.
Rated Operational Voltage [Ue]: 690 V AC, 0 to 400 Hz power circuit IEC 60947-4-1.
Associated Fuse Rating: 4 A gG and 4 A BS for signaling circuit.
Rated Impulse Withstand Voltage [Uimp]: 6 kV.
Phase Failure Sensitivity: Trips at 130 % of Ir on two phases, last at 0.
Control Type: Red push-button stop, Blue push-button reset.
Temperature Compensation: -20 to 60 °C.
Connections – Terminals: Screw clamp terminals for control circuit and power circuit with 1 to 10 mm² cables, flexible and solid, with or without cable end.
Tightening Torque: 1.7 N.m for control circuit, 2.5 N.m for power circuit.
Dimensions: Height 6.6 cm, Width 4.5 cm, Depth 7.0 cm.
Net Weight: 0.124 kg.
Environmental and Mechanical Characteristics: Climatic withstand IACS E10, IP20 protection degree IEC 60529, operational ambient temperature -20 to 60 °C without derating, storage temperature -60 to 70 °C, flame retardance V1 UL 94, mechanical robustness includes vibrations 6 Gn IEC 60068-2-6 and shocks 15 Gn for 11 ms IEC 60068-2-7, dielectric strength 1.89 kV 50 Hz IEC 60947-1.
Standards and Certifications: Complies with EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495. Certifications include IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, Lloyds register of shipping (LROS), ATEX INERIS, UKCA.
Product Origin and Identification: Category US10I1222347, Discount Schedule 0I12, GTIN 3389110346862, Returnable, Country of Origin FR.
Packaging Information: Primary package: Type PCE, 1 unit, dimensions 9.0 cm height, 7.8 cm width, 4.9 cm length, weight 140 g. Secondary package: Type S02, 24 units, dimensions 15.0 cm height, 30.0 cm width, 40.0 cm length, weight 3.686 kg.
Warranty: 18 months.
Customs Tariff Code: 85364900.
