Description

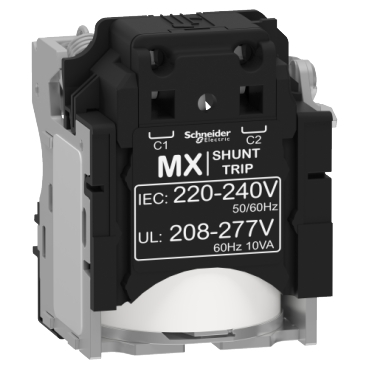

Product: Shunt trip release MX, ComPacT NSX
Range: ComPact NSX <630. Molded case circuit breakers from 100 to 630 A.
This MX shunt trip release is intended for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. It is rated for voltages of 220 to 240 VAC at 50/60 Hz and 208 to 277 VAC at 60 Hz. Used as an auxiliary for emergency off or remote opening, it opens the circuit breaker when the control voltage Un rises above 0.7 to 1.1 x its rated voltage.
Standards and Certification: Complies with IEC 60947-2. It is a UL Listed/CSA Certified accessory.
Voltage Release Type: Opening coil, Shunt trip release.
Control Circuit Voltage: 220 to 240 V AC 50/60 Hz, 208 to 277 V AC 60 Hz.
Main Specifications: Response time 50 ms, impulse duration >= 20 ms, supply inrush power 10 VA.
Connection: Auxiliary terminals use spring connection for wires sized 0.5 to 1.5 mm² (AWG 20 to AWG 16). Wire stripping length is 0.7 cm.
Packing Information (cm, kg): Package 1 – Height: 4.5, Width: 4.9, Length: 6.3, Weight: 118 g. Package 2 – Height: 7.4, Width: 10.6, Length: 23.8, Weight: 1.24 kg. Package 3 – Height: 30, Width: 30, Length: 40, Weight: 7.876 kg.
Warranty: 18 months.
Environmental Data: Carbon footprint 1 kg CO2 eq total life cycle. Packaging made with minimum 70% recycled cardboard. Not free of single use plastic. Compliant with EU RoHS with exemptions. PVC free. Not silicon free. Not included in take-back program.
Country of Origin: Poland (PL).
Customs Tariff Code: US10NET01081.
