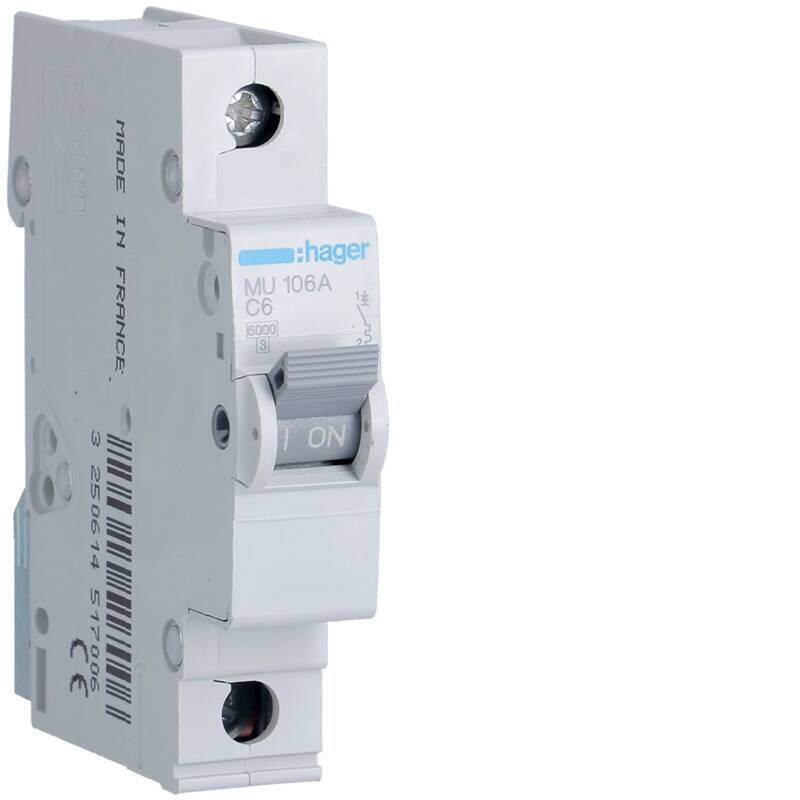

MCB 1P 6kA C-6A 1M

Description

Technical properties

Elec­tric current
Rated current: 6 A
Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2: 7.50 kA
Rated short-­cir­cuit breaking capa­city Icn under 230 V AC according to IEC 60898-1: 6 kA
Rated current -15°C: 7 A
Rated current -10°C: 6.90 A
Rated current -5°C: 6.80 A
Rated current at 0°C: 6.70 A
Rated current 5°C: 6.60 A
Rated current 10°C: 6.50 A
Rated current 15°C: 6.30 A
Rated current at 20°C: 6.20 A
Rated current 25°C: 6.10 A
Rated current 30°C: 6 A
Rated current 35°C: 5.90 A
Rated current at 40°C: 5.80 A
Rated current at 45°C: 5.60 A
Rated current at 50°C: 5.50 A
Rated current 55°C: 5.40 A
Rated current 60°C: 5.20 A
Rated current 65°C: 5.10 A
Rated current 70°C: 5 A

Archi­tec­ture
Type of pole: 1P
Curve: C

Capa­city
Number of modules: 1

Main elec­trical attrib­utes
Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1: 6 kA

Install­a­tion, mounting
Nominal tight­ening torque top terminal: 2.80 – 2.80 Nm
Nominal tight­ening torque down terminal: 2.80 – 2.80 Nm
Nominal tight­ening torque: 2.80 – 2.80 Nm
Type of bottom connec­tion for modular devices: bicon­nect
Type of top connec­tion for modular devices: Screw terminal
360° mounting posi­tion possible: Yes

Voltage
Rated oper­a­tional voltage Ue: 230 – 400 V
Type voltage supply: AC
Rated insu­la­tion voltage Ui: 500 V
Rated impulse with­stand voltage Uimp: 4,000 V

Frequency
Frequency: 50 – 60 Hz

Connec­tion
Cross-sec­tion of input and output with screws, for massive conductors: 1 – 35 mm²
Cross-sec­tion of input and output with screws, for flex­ible conductors: 1 – 25 mm²
Cross-sec­tion of input with screws, for flex­ible conductors: 1 – 25 mm²
Cross-sec­tion of input with screws, for massive conductors: 1 – 35 mm²
Cross-sec­tion flex­ible conductor: 1 – 25 mm²
Cross-sec­tion rigid conductor: 1 – 35 mm²

Safety
Ingress Protec­tion (IP) class: IP20

Use condi­tions
Degree of pollu­tion according to IEC 60664 / IEC 60947-2: 2
Class of energy limit­a­tion I²t: 3
Air humidity protec­tion: For all climates
Oper­ating temper­ature: -25 – 70 °C

Power
Total power loss under IN: 1.30 W

Connectivity
Type of connec­tion: Screw terminal
Top connec­tion align­ment for modular devices: Aligned terminal
Down connec­tion align­ment for modular devices: Aligned terminal

Dimen­sions
Height: 83 mm
Width: 17.50 mm
Depth: 70 mm
