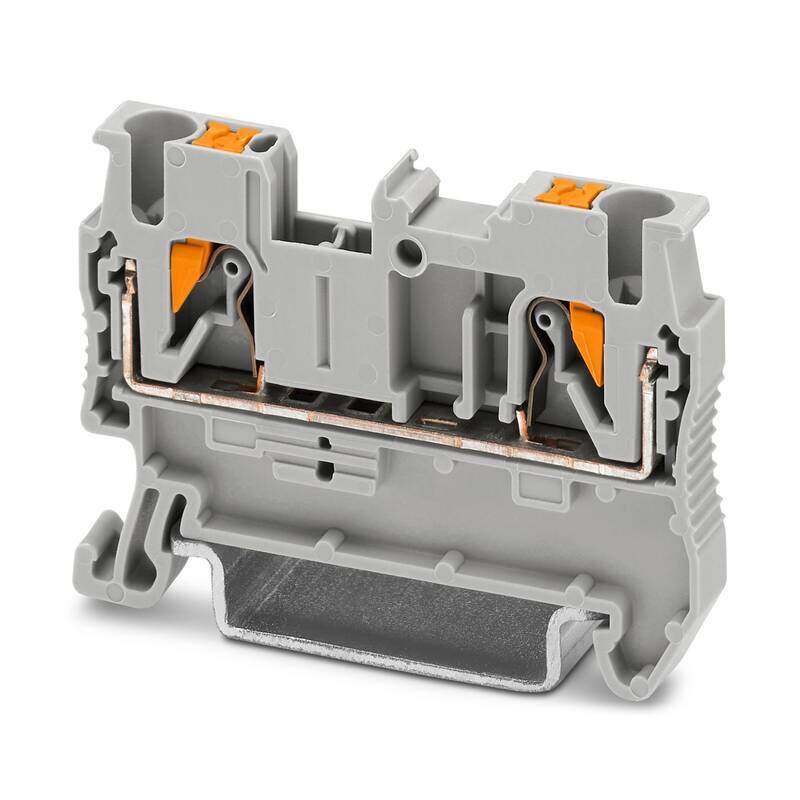

Product Name: PT 2,5 – Feed-through terminal block
Item number: 3209510
Description: Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 2, number of positions: 1, connection method: Push-in connection, Rated cross section: 2.5 mm2, cross section: 0.14 mm2 – 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
Technical data
Product properties
Product family: PT
Area of application: Railway industry, Machine building, Plant engineering, Process industry
Number of positions: 1
Number of connections: 2
Number of rows: 1
Potentials: 1
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Electrical properties
Rated surge voltage: 8 kV
Maximum power dissipation for nominal condition: 0.77 W
Connection data
Number of connections per level: 2
Nominal cross section: 2.5 mm²
Connection method: Push-in connection
Stripping length: 8 mm … 10 mm
Connection in acc. with standard: IEC 60947-7-1
Conductor cross-section rigid: 0.14 mm² … 4 mm²
Cross section AWG: 26 … 12 (converted acc. to IEC)
Conductor cross-section flexible: 0.14 mm² … 4 mm²
Maximum load current: 30 A (with 4 mm² conductor cross-section, rigid)
Nominal voltage: 800 V
Dimensions
Width: 5.2 mm
End cover width: 2.2 mm
Height: 48.6 mm
Depth: 35.3 mm
Depth on NS 35/7,5: 36.8 mm
Depth on NS 35/15: 44.3 mm
Material specifications
Color: gray (RAL 7042)
Flammability rating according to UL 94: V0
Insulating material group: I
Insulating material: PA
Mounting
Mounting type: NS 35/7,5, NS 35/15
Commercial data
GTIN: 4046356329781
Weight per piece (excluding packing): 5.941 g
Customs tariff number: 85369010
Country of origin: DE
