| Weight | 0.102 kg |
|---|
| Dimensions | 6.9 × 1.75 × 8.8 cm |
|---|
| Product ID | 2CDS271011R0064 |
|---|
| Extended Product Type | SH201M-C6 |
|---|

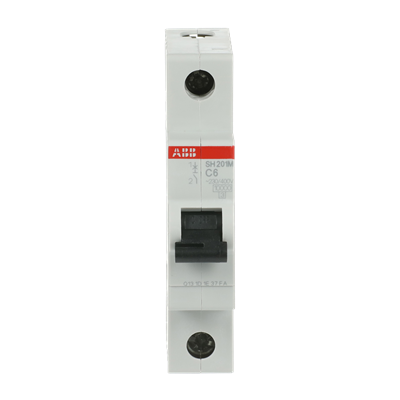

| Catalog Description | Miniature Circuit Breaker – SH200M – 1P – 6 A – C – (AC) 10 kA |
|---|
| Long Description | SH201M-C6 Miniature Circuit Breaker – 1P – C – 6 A |
|---|
| Electrical Ratings | {
"Tripping_Characteristic_Attribute": "C",
"Rated_Operational_Voltage_Attribute": "230 V",
"Operational_Voltage_Minimum_Attribute": 12,
"Operational_Voltage_Maximum_Attribute": 253,
"Rated_Insulation_Voltage_Ui_Attribute": "440 V",
"Rated_Impulse_Withstand_Voltage_Uimp_Attribute": {
"General_Attribute": "4 kV",
"Altitude_2000_m_Attribute": "5 kV",
"Sea_Level_Attribute": "6.2 kV"
},
"Input_Voltage_Type_Attribute": "AC",
"Rated_Current_In_Attribute": 6,
"Rated_Short_Circuit_Capacity_AC_Attribute": "10 kA",
"Rated_Conditional_Short_Circuit_Current_Inc_Attribute": "25 kA",
"Rated_Frequency_Hz_Attribute": "50 / 60",
"Power_Loss_W_Attribute": 2,
"Overvoltage_Category_Attribute": "III"
} |
|---|
| Tripping Characteristic | C |
|---|
| Rated Operational Voltage | 230 V |
|---|
| Operational Voltage Minimum | 12 |
|---|
| Operational Voltage Maximum | 253 |
|---|
| Rated Insulation Voltage Ui | 440 V |
|---|
| Rated Impulse Withstand Voltage Uimp | {
"General_Attribute": "4 kV",
"Altitude_2000_m_Attribute": "5 kV",
"Sea_Level_Attribute": "6.2 kV"
} |
|---|
| General | 4 kV |
|---|
| Altitude 2000 m | 5 kV |
|---|
| Sea Level | 6.2 kV |
|---|
| Input Voltage Type | AC |
|---|
| Rated Current In | 6 |
|---|
| Rated Short Circuit Capacity AC | 10 kA |
|---|
| Rated Conditional Short Circuit Current Inc | 25 kA |
|---|
| Rated Frequency Hz | 50 / 60 |
|---|
| Power Loss W | 2 |
|---|
| Overvoltage Category | III |
|---|
| Mechanical and Physical | {
"Number_of_Protected_Poles_Attribute": 1,
"Number_of_Poles_Attribute": "1P",
"Actuator_Type_Attribute": "Toggle",
"Actuator_Marking_Attribute": "I / O",
"Actuator_Material_Attribute": "Insulation Group II, Black, Sealable",
"Tightening_Torque_Nm_Attribute": 2,
"Screw_Terminal_Type_Attribute": "Cage Terminal",
"Recommended_Screw_Driver_Attribute": "Pozidriv 2",
"Accessories_Available_Attribute": "Yes",
"Connecting_Capacity_Attribute": {
"Conductor_Attribute": "25 / 25 mm²",
"Flexible_with_Ferrule_Attribute": "0.75 … 16 mm²",
"Flexible_Attribute": "0.75 … 16 mm²",
"Rigid_Attribute": "0.75 … 25 mm²",
"Stranded_Attribute": "0.75 … 25 mm²"
},
"Installation_Size_Attribute": "acc. to DIN 43880 1",
"Terminal_Type_Attribute": "Screw Terminals",
"Housing_Material_Attribute": "Insulation Group II, RAL 7035",
"Pole_Net_Weight_kg_Attribute": 0.125,
"Built_In_Depth_cm_Attribute": 6.9
} |
|---|
| Number of Protected Poles | 1 |
|---|
| Number of Poles | 1P |
|---|
| Actuator Type | Toggle |
|---|
| Actuator Marking | I / O |
|---|
| Actuator Material | Insulation Group II, Black, Sealable |
|---|
| Tightening Torque Nm | 2 |
|---|
| Screw Terminal Type | Cage Terminal |
|---|
| Recommended Screw Driver | Pozidriv 2 |
|---|
| Accessories Available | Yes |
|---|
| Connecting Capacity | {
"Conductor_Attribute": "25 / 25 mm²",
"Flexible_with_Ferrule_Attribute": "0.75 … 16 mm²",
"Flexible_Attribute": "0.75 … 16 mm²",
"Rigid_Attribute": "0.75 … 25 mm²",
"Stranded_Attribute": "0.75 … 25 mm²"
} |
|---|
| Conductor | 25 / 25 mm² |
|---|
| Flexible with Ferrule | 0.75 … 16 mm² |
|---|
| Flexible | 0.75 … 16 mm² |
|---|
| Rigid | 0.75 … 25 mm² |
|---|
| Stranded | 0.75 … 25 mm² |
|---|
| Installation Size | acc. to DIN 43880 1 |
|---|
| Terminal Type | Screw Terminals |
|---|
| Housing Material | Insulation Group II, RAL 7035 |
|---|
| Pole Net Weight kg | 0.125 |
|---|
| Built In Depth cm | 6.9 |
|---|
| Technical | {
"Dielectric_Test_Voltage_Attribute": "50 / 60 Hz – 1 min 2 kV",
"Power_Supply_Connection_Attribute": "Arbitrary",
"Contact_Position_Indication_Attribute": "ON / OFF",
"Energy_Limiting_Class_Attribute": 3,
"Electrical_Endurance_AC_cycles_Attribute": 20000,
"Mechanical_Endurance_cycles_Attribute": 20000
} |
|---|
| Dielectric Test Voltage | 50 / 60 Hz – 1 min 2 kV |
|---|
| Power Supply Connection | Arbitrary |
|---|
| Contact Position Indication | ON / OFF |
|---|
| Energy Limiting Class | 3 |
|---|
| Electrical Endurance AC cycles | 20000 |
|---|
| Mechanical Endurance cycles | 20000 |
|---|
| Environmental | {
"Ambient_Air_Temperature_Operation_C_Attribute": "-25 … +55",
"Ambient_Air_Temperature_Storage_C_Attribute": "-40 … +70",
"Reference_Ambient_Air_Temperature_C_Attribute": 30,
"Degree_of_Protection_Attribute": "IP20, Enclosure with Cover IP40",
"Pollution_Degree_Attribute": 2,
"Environmental_Conditions_Attribute": "28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 %",
"Resistance_to_Vibrations_Attribute": "20 Cycles with Load 0.8 In: 5g 5 … 150 … 5 Hz",
"Resistance_to_Shock_Attribute": "25g 2 shocks 13 ms",
"Environmental_Information_Attribute": "2CDK400030D0201"
} |
|---|
| Ambient Air Temperature Operation C | -25 … +55 |
|---|
| Ambient Air Temperature Storage C | -40 … +70 |
|---|
| Reference Ambient Air Temperature C | 30 |
|---|
| Degree of Protection | IP20, Enclosure with Cover IP40 |
|---|
| Pollution Degree | 2 |
|---|
| Environmental Conditions | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % |
|---|
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 … 150 … 5 Hz |
|---|
| Resistance to Shock | 25g 2 shocks 13 ms |
|---|
| Environmental Information | 2CDK400030D0201 |
|---|
| Standards and Certifications | {
"Standards_Attribute": "IEC/EN 60898-1",
"Certification_Agency_Attribute": [
"EN",
"IEC"
],
"RoHS_Declaration_Attribute": "EU Declaration of Conformity SH200_SH200M_SH200T_SH200L",
"RoHS_Information_Attribute": "Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019",
"RoHS_Date_Attribute": "20210608",
"REACH_Declaration_Attribute": "Declaration regarding the REACH-Regulation",
"REACH_Information_Attribute": "False – does not contain substances > 0.1 mass percentage",
"REACH_Date_Attribute": "20250917",
"Conflict_Minerals_Reporting_Template_Attribute": "Conflict Minerals Reporting Template",
"WEEE_Category_Attribute": "5. Small Equipment (No External Dimension More Than 50 cm)",
"WEEE_B2C_B2B_Attribute": "Business To Business",
"Customs_Tariff_Code_Attribute": "39121603"
} |
|---|
| Standards | IEC/EN 60898-1 |
|---|
| Certification Agency | [
"EN",
"IEC"
] |
|---|
| RoHS Declaration | EU Declaration of Conformity SH200_SH200M_SH200T_SH200L |
|---|
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| RoHS Date | 20210608 |
|---|
| REACH Declaration | Declaration regarding the REACH-Regulation |
|---|
| REACH Information | False – does not contain substances > 0.1 mass percentage |
|---|
| REACH Date | 20250917 |
|---|
| Conflict Minerals Reporting Template | Conflict Minerals Reporting Template |
|---|
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
|---|
| WEEE B2C B2B | Business To Business |
|---|
| Customs Tariff Code | 39121603 |
|---|
| Ordering | {
"Package_Level_1_Units_Attribute": "carton 10 piece",
"Package_Level_1_Gross_Weight_kg_Attribute": 1.06
} |
|---|
| Package Level 1 Units | carton 10 piece |
|---|
| Package Level 1 Gross Weight kg | 1.06 |
|---|
| Installation | {
"Instructions_and_Manuals_Attribute": "MCB – general mounting instruction",
"Mounting_on_DIN_Rail_Attribute": [
"TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715",
"TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715"
],
"Mounting_Position_Attribute": "any"
} |
|---|
| Instructions and Manuals | MCB – general mounting instruction |
|---|
| Mounting on DIN Rail | [
"TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715",
"TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715"
] |
|---|
| Mounting Position | any |
|---|
