Description

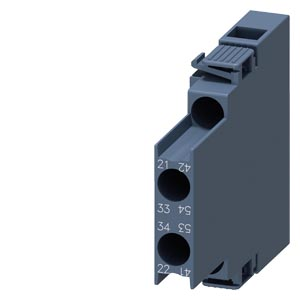

Product: 3RH2911-1DA11
Description: auxiliary switch, lateral, 1 NO + 1 NC, on the left: 41/42, 53/54, on the right: 21/22, 33/34, current path: 1 NC, 1 NO, screw terminal, for contactors 3RT2.1
Product Family: Instantaneous
Lifecycle Status: PM300:Active Product
Price Group: 41B / 41B
Surcharge for Raw Materials: None
Metal Factor: LBO—–
Export Control Regulations: AL : N / ECCN : N
Standard Lead Time ex-works: 3 Day/Days
Net Weight: 0.037 Kg
Packaging Dimensions (L x W x H): 6.0 cm x 7.0 cm x 2.0 cm
Quantity Unit: 1 Piece
Packaging Quantity: 1
EAN: 4011209787094
UPC: 662643909890
Customs Tariff Code: 85365080
Catalog ID: CC-IC10
Product Group: 5344
Group Code: R711
Country of Origin: Romania
RoHS Compliance: Since: 01.10.2009
Product Class: A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE Take-Back Obligation: Yes
REACH Information: There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.
We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP Number: Not available
Classifications:
eClass 12: 27-37-13-02, eClass 14: 27-37-13-02, eClass 6: 27-37-13-02, eClass 7.1: 27-37-13-02, eClass 8: 27-37-13-02, eClass 9: 27-37-13-02, eClass 9.1: 27-37-13-02
ETIM 10: EC000041, ETIM 7: EC000041, ETIM 8: EC000041, ETIM 9: EC000041
IDEA 4: 4743, UNSPSC 15: 39-12-15-22
