Description
Product Description

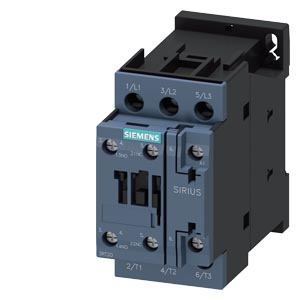

Power contactor for AC-3e/AC-3 applications, rated for 25 A, 11 kW at 400 V, 3-pole, operating at 24 V AC, 50 Hz frequency. It includes auxiliary contacts: 1 NO (normally open) + 1 NC (normally closed), with screw terminal connection. Size designation: S0.
Technical Data
Net Weight: 0.413 Kg
Packaging Dimensions: 5.4 cm x 9.2 cm x 10.55 cm
Quantity Unit: 1 Piece
Packaging Quantity: 1
Regulatory and Compliance
Country of Origin: Germany
RoHS Compliance Since: 01.10.2009
WEEE Take-Back Obligation: Yes
Customs Tariff Code: 85364190
Classification Codes
eClass: 27-37-10-03 (versions 6, 7.1, 8, 9, 9.1, 12, 14)
ETIM: EC000066 (versions 7, 8, 9, 10)
IDEA: 4755
UNSPSC: 39-12-15-29
Additional Information
Product Family: SIRIUS 3RT contactors, 3-pole, up to 250 kW
Product Lifecycle: PM300:Active Product
Export Control Regulations: AL : N / ECCN : N
Standard Lead Time Ex-Works: 5 Day/Days
Region Specific Price Group: 41B / 41B
Surcharge for Raw Materials: None
Metal Factor: LEO—–
Compliance with RoHS directive: Since 01.10.2009
