Description

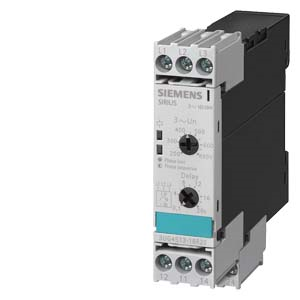

Product Description – 3UG4513-1BR20
Status: Product phase-out since 01.10.2023. The preferred successor is 3UG5514-1BR20.
Function: Phase failure and sequence monitoring with adjustable undervoltage, analog monitoring relay for phase failure and sequence monitoring, adjustable undervoltage, asymmetry 20%, fixed.
Voltage range: 3 x 160 to 690 V AC, 50 to 60 Hz.
Hysteresis: 5%, fixed.
Delay time: 0-20 s.
Contacts: 2 changeover contacts, screw terminal.
Product family: Line monitoring.
Net weight: 0.12 kg.
Packaging dimensions: 2.9 cm x 9.9 cm x 10.7 cm.
Country of origin: Germany.
Customs Tariff Code: 85364900.
RoHS compliance: Since 01.05.2012.
WEEE Take-Back Obligation: Yes.
Additional notes: The product was replaced with the successor product 3UG5514-1BR20, an analog adjustment monitoring relay for phase failure, phase sequence, asymmetry and under-voltage monitoring, 3x 160-690 V AC, 15-70 Hz, with 2 changeover contacts and screw terminal.
