Description

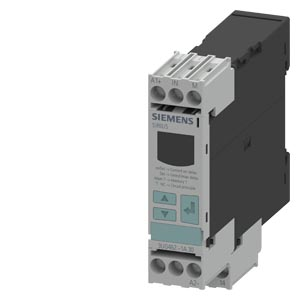

Product 3UG4622-1AW30 Phase-out Announcement
Product description: !!! product phase-out !!! the preferred successor is 3UG5642-1CW30 digital monitoring relay current monitoring, 22.5 mm from 0.05 to 10 A AC/DC overshoot and undershoot 24 to 240 V AC/DC 50 to 60 Hz DC and AC ON-delay and noise pulses delay 0.1 to 20 s hysteresis 0.01 to 5 A 1 changeover contact with or without fault buffer screw terminal
Product family: Current monitoring
Product lifecycle: PM400:Announcement of product phase-out
PLM effective date: Product phase-out since: 01.09.2025
Notes: The product was replaced with the following successor product: 3UG5642-1CW30
Successor description: digital monitoring relay current, active current, voltage, cos-phi and performance monitoring up to 690 V AC/DC up to 10 A supply voltage 24 … 240 V AC/DC, 50 .. 60 Hz ON delay and tripping delay 0.1..999.9 s 2 changeover contacts screw terminal
Region Specific Price Group / Headquarter Price Group: 41H / 41H
Surcharge for Raw Materials: None
Metal Factor: LAO—–
Export Control Regulations: AL : N / ECCN : 9N9999
Standard lead time ex-works: 3 Day/Days
Net Weight: 0.152 Kg
Packaging Dimension: 2.9 cm x 9.9 cm x 10.7 cm
Package size unit of measure: MM
Quantity Unit: 1 Piece
Packaging Quantity: 1
EAN: 4011209642423
UPC: 754554932569
Customs Tariff Code: 85364900
LKZ_FDB / CatalogID: CC-IC10
Product Group: 5885
Group Code: R711
Country of origin: Germany
Compliance with the substance restrictions according to RoHS directive: Since: 01.05.2012
Product class: A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE Take-Back Obligation: Yes
REACH Art. 33 Duty to inform: Lead CAS-No. 7439-92-1 > 0.1 % (w / w): This product contains Lead at a concentration higher than 0.1% weight by weight (w/w). Lead monoxide (lead oxide) CAS-No. 1317-36-8 > 0.1 % (w / w): This product contains Lead monoxide at a concentration higher than 0.1% weight by weight (w/w). 6,6′-di-tert-butyl-2,2′-methylenedi-p-cresol > 0.1 % (w / w): This product contains this substance at a concentration higher than 0.1% weight by weight (w/w). Based on available information, these substances do not pose any risk if used as intended including disposal.
SCIP number: c1ce2eaf-5215-4f0c-806a-44fdbf605181
Classification eClass versions: 12, 14, 6, 7.1, 8, 9, 9.1: 27-37-18-02
Classification ETIM versions: 7, 8, 9, 10: EC001440
IDEA Classification: 4727
UNSPSC Classification: 39-12-15-21
