Description

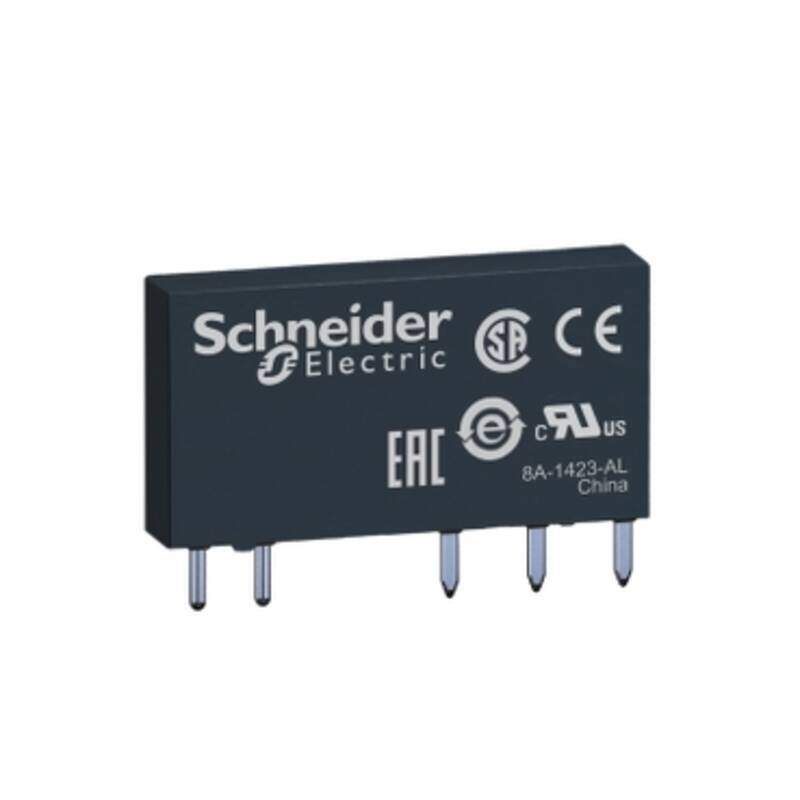

slim interface plug-in relay – HARMONY RSL – 1 C/O standard – 24 V DC – 6 A
Product Reference: RSL1AB4BD
Description: This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. Easy installation and withdrawal the relay from its socket. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night.
Specifications
Range of product: Harmony Electromechanical Relays
Series name: RSL series
Product or component type: Plug-in relay
Relay type: Slim interface relay
Contact operation: Standard
Contacts type and composition: 1 C/O
Control type: Without lockable test button
status LED: Without
[Uc] control circuit voltage: 24 V DC
[Ithe] conventional enclosed thermal current: 6 A at -40…55 °C
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC
[Ie] rated operational current: 6 A (AC-1/DC-1) conforming to IEC/UL
minimum switching current: 100 mA
Minimum switching voltage: 12 V
Minimum switching capacity: 120 mW
Rated operational voltage limits: 18…33.6 V DC
[Ui] rated insulation voltage: 250 V conforming to IEC
277 V conforming to cUL
Operating time: 5 ms reset
12 ms
Maximum switching voltage: 277 V
Drop-out voltage threshold: >= 0.05 Uc
Load current: 6 A at 250 V AC 0.5 mm mounting distance
Maximum switching capacity: 1500 VA
150 W
Terminals description ISO n°1: (11-12-14)OC
(A1-A2)CO
Average resistance: 3390 Ohm at 23 °C +/- 15 %
Average coil consumption: 0.17 W
Mechanical durability: 10000000 cycles
Electrical durability: 60000 cycles, 6 A at 250 V, AC-1 C/O
Safety reliability data: B10d = 60000
Operating rate: <= 360 cycles/hour under load
<= 18000 cycles/hour no-load
Protection category: RT III
Mounting support: Socket or PCB
Operating position: Any position
Test levels: Level A group mounting
Device presentation: Complete product
Contacts material: Silver alloy (AgSnO2)
Shape of pin: Flat (PCB type)
Width: 0.5 cm
Height: 2.8 cm
Depth: 1.85 cm
Net weight: 0.0054 kg
Environment
Dielectric strength: 1000 V AC between contacts
4000 V AC between coil and contact
Vibration resistance: +/- 0.1 cm (f= 10…55 Hz) conforming to IEC 60068-2-6
IP degree of protection: IP40 conforming to IEC 60529
Ambient air temperature for operation: -40…55 °C
Standards: CSA C22.2 No 14
IEC 61810-1
UL 508
Product certifications: CSA
UL
EAC
Ambient air temperature for storage: -40…70 °C
Shock resistance: 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27
5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.500 cm
Package 1 Width: 1.500 cm
Package 1 Length: 2.800 cm
Package 1 Weight: 5.000 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 0.700 cm
Package 2 Width: 2.400 cm
Package 2 Length: 30.500 cm
Package 2 Weight: 70.000 g
Unit Type of Package 3: S01
Number of Units in Package 3: 500
Package 3 Height: 15.000 cm
Package 3 Width: 15.000 cm
Package 3 Length: 40.000 cm
Package 3 Weight: 3.913 kg
Contractual warranty
Warranty: 18 months
