Description
Product Description

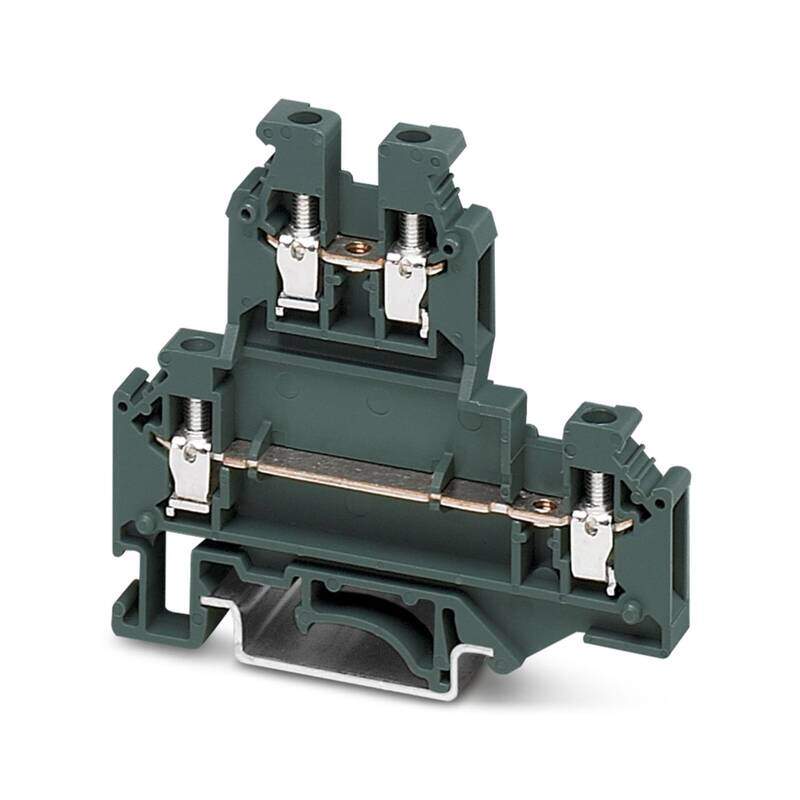

Double-level terminal block, nom. voltage: 500 V, Thermal continuous current Ith: 29 A, number of connections: 4, number of positions: 2, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.5 mm2 – 6 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: dark gray
Product details
Technical data
Product properties
Product family: TB
Number of positions: 2
Number of connections: 4
Number of rows: 2
Potentials: 2
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Electrical properties
Rated surge voltage: 6 kV
Maximum power dissipation for nominal condition: 0.77 W
Connection data
Number of connections per level: 2
Nominal cross section: 4 mm²
Rated cross section AWG: 10
Connection method: Screw connection
Screw thread: M3
Tightening torque: 0.5 … 0.6 Nm
Stripping length: 8 mm
Internal cylindrical gage: A4
Connection in acc. with standard: IEC 60947-7-1
Conductor cross-section rigid: 0.5 mm² … 6 mm²
Cross section AWG: 20 … 10 (converted acc. to IEC)
Conductor cross-section flexible: 0.5 mm² … 4 mm²
Conductor cross-section, flexible [AWG]: 20 … 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² … 4 mm²
Flexible conductor cross-section (ferrule with plastic sleeve): 0.5 mm² … 2.5 mm²
Thermal continuous current Ith: 29 A (with 4 mm² conductor cross-section)
Maximum load current: 32 A (with 6 mm² conductor connection)
Nominal voltage: 500 V (in the case of enclosed clamping space)
Dimensions
Width: 6.2 mm
End cover width: 2.5 mm
Height: 67 mm
Depth on NS 32: 67 mm
Depth on NS 35/7,5: 62 mm
Depth on NS 35/15: 69.5 mm
Material specifications
Color: traffic gray B (RAL 7043)
Flammability rating according to UL 94: V0
Insulating material group: I
Insulating material: PA
Static insulating material application in cold: -60 °C
Relative insulation material temperature index (Elec., UL 746 B): 130 °C
Mechanical properties
Open side panel: Yes
Mounting
Mounting type: NS 35/7,5, NS 35/15, NS 32
Commercial data
Item number: 3214233
Packing unit: 50 pc
Minimum order quantity: 50 pc
GTIN: 4046356575379
Weight per piece (excluding packing): 14.298 g
Customs tariff number: 85369010
Country of origin: IN
