Description

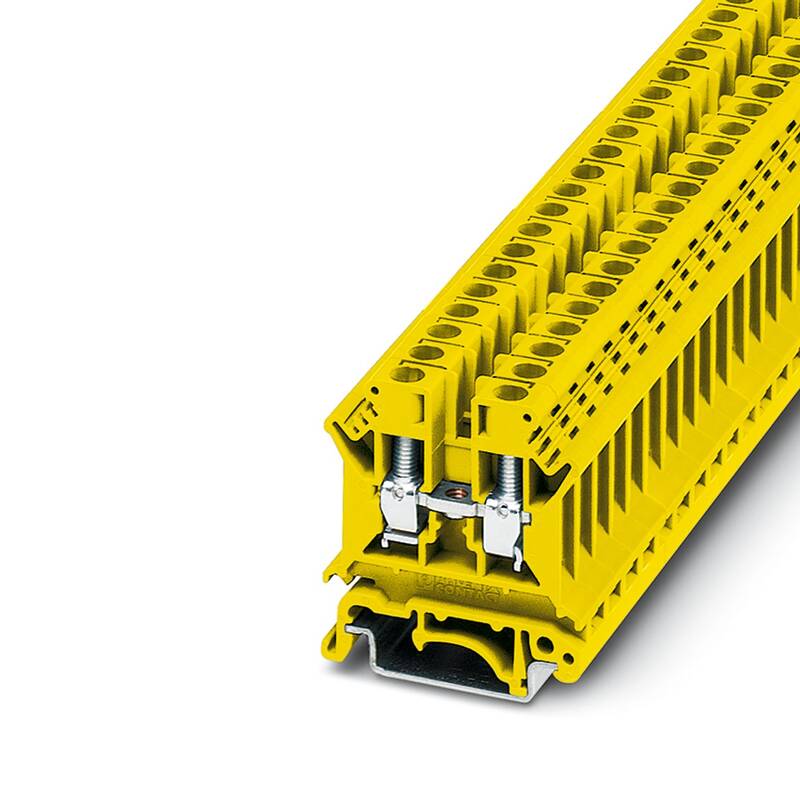

TB 6 EI YE – Feed-through terminal block
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 41 A, number of connections: 2, connection method: Screw connection, Rated cross section: 6 mm2, cross section: 1.5 mm2 – 6 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: yellow
Product details
Product properties
Product family: TB
Number of connections: 2
Number of rows: 1
Potentials: 1
Overvoltage category: III
Degree of pollution: 3
Electrical properties
Rated surge voltage: 8 kV
Maximum power dissipation for nominal condition: 1.31 W
Connection data
Number of connections per level: 2
Nominal cross section: 6 mm²
Connection method: Screw connection
Screw thread: M3,5
Tightening torque: 0.8 Nm
Stripping length: 10 mm
Internal cylindrical gage: A5
Connection in acc. with standard: IEC 60947-7-1
Conductor cross-section rigid: 1.5 mm² … 6 mm²
Cross section AWG: 14 … 10 (converted acc. to IEC)
Conductor cross-section flexible: 1.5 mm² … 6 mm²
Nominal current: 41 A
Maximum load current: 41 A (with 6 mm² conductor connection)
Nominal voltage: 1000 V (in the case of enclosed clamping space)
Dimensions
Width: 8.2 mm
End cover width: 1.8 mm
Height: 42.7 mm
Depth on NS 32: 52 mm
Depth on NS 35/7,5: 47.2 mm
Depth on NS 35/15: 54.7 mm
Material specifications
Color: yellow (RAL 1018)
Flammability rating according to UL 94: V2
Insulating material group: I
Insulating material: PA
Mounting
Mounting type: NS 35/7,5, NS 35/15, NS 32
Commercial data
Item number: 3000860
Packing unit: 50 pc
Minimum order quantity: 50 pc
GTIN: 4055626646060
Weight per piece (excluding packing): 22.22 g
Customs tariff number: 39269098
Country of origin: IN
