Description

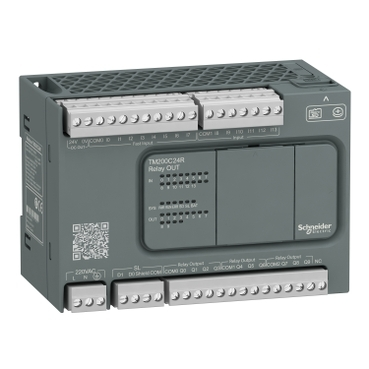

TM200C24R Controller M200 24 IO Relay
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 I/O and 2 axis motion control. It provides 4 fast inputs, 4 high speed inputs, 6 regular inputs, and 10 relay outputs (normally open relay output). It operates at an input voltage of 24 V DC, with discrete output voltages of 24 V DC and 220 V AC, and an output current of 2 A. It is easy to maintain and update with its micro SD memory card and includes integrated connections such as mini B USB 2.0, non isolated and isolated serial link interfaces (RS485, RS232). The controller has an internal flash memory of 512 byte and supports a micro SD card capacity up to 32 GB. Rated IP20, its dimensions are 13 cm (width) x 7 cm (depth) x 9 cm (height) and net weight is 405 g.
Designed for textile, machine tool, packaging, material handling, pumping, hoisting, and electronic assembly machines. Certified by CE, CSA, IACS E10, RCM, and CULus. It complies with IEC 61010-2-201 and IEC 61131-2 standards and supports mounting on TH35-15 rails or TH35-7.5 plates/panels.
The product supports up to 4 expansion modules and has a supply voltage range of 85 to 264 V with 50/60 Hz frequency. It features fast response times for inputs and outputs, multiple local LED indicators for status signaling, and robust electrical and mechanical durability.
Environmental protection is IP20 with protective cover. Operating ambient temperature range is 0 to 55 °C, storage temperature from -25 to 70 °C, with 10 to 95% relative humidity without condensation. Suitable for altitudes up to 2000 m during operation.
Customs Tariff Code: 85371098
