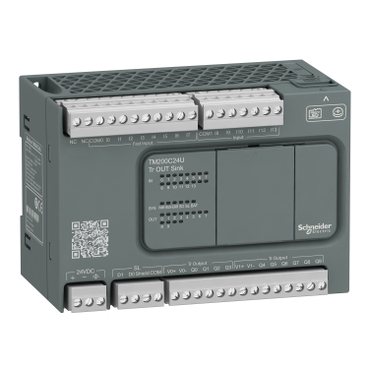

controller M200 24 IO transistor SINK

Range of product: Easy Modicon M200; Product or component type: Logic controller; [Us] rated supply voltage: 24 V DC; Discrete I/O number: 24; Discrete input number: I2…I5: 4 fast input, I0, I1, I6, I7: 4 high speed input, I8…I13: 6 regular input; Discrete output number: Q0…Q1: 2 fast output (PLS/PWM/PTO mode), Q2…Q9: 8 transistor output; Discrete input voltage: 24 V; Discrete input voltage type: DC; Discrete input current: 7 mA for input; Discrete input logic: Sink or source (positive/negative) type 1 conforming to IEC 61131-2; Discrete output voltage: 24 V DC; Discrete output current: 0.5 A; Discrete output type: Transistor; Discrete output logic: Negative logic (sink); Power consumption: 10 W at 24 V DC (with max I/O); Maximum number of I/O expansion module: 4 with 64 discrete output(s) for relay output, 4 with 138 discrete output(s) for transistor output; Supply voltage limits: 20.4…28.8 V; Inrush current: 35 A; Voltage state 1 guaranteed: >= 15 V for input; Voltage state 0 guaranteed: <= 5 V for input; Input impedance: 3.3 kOhm for discrete input; Response time: 1 ms turn-on and turn-off for outputs Q0…Q9, 5 μs turn-on/off for high speed inputs, 100 μs turn-on/off for fast inputs, 35 μs turn-on/off for regular inputs; Configurable filtering time: 0 ms, 3 ms, 12 ms for input; Maximum current per output common: 2 A at COM 0, 3 A at COM 1; Output frequency: 100 kHz for fast output (PWM/PLS mode) at Q0…Q1; Maximum leakage current: 0.1 mA for transistor output; Maximum voltage drop: <1 V; Maximum tungsten load: <12 W for output and fast output; Protection type: Overload and short-circuit protection at 3.8 A; Reset time: 1 s automatic reset; Memory capacity: 512 byte internal flash for backup of programs; Data storage equipment: 32 GB micro SD card (optional); Battery type: BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s); Backup time: 3 years at 25 °C (by interruption of power supply); Execution time for 1 KInstruction: 0.3 ms for event and periodic task; Execution time per instruction: 0.2 μs Boolean; Execution time for event task: 60 μs response time; Clock drift: <= 90 s/month at 25 °C; Regulation loop: Adjustable PID regulator up to 14 simultaneous loops; Positioning functions: PWM/PLS 2 channels at 100 kHz; Control signal type: Quadrature (x1, x2, x4), Pulse/direction, Single phase, CW/CCW at 100 kHz for fast input; Counting input number: 4 fast input (HSC mode) at 100 kHz 32 bits; Integrated connection type: USB mini B 2.0 connector, Non isolated serial link 1 with RS485, Non isolated serial link 2 with RS232/RS485, Isolated serial link 2 with RS485; Transmission rate: 1.2-115.2 kbit/s for RS485 and RS232, 12 Mbit/s for USB; Communication port protocol: USB port: USB – SoMachine-Network, Non isolated serial link: Modbus master/slave – RTU/ASCII or SoMachine-Network; Local signalling: 7 LEDs for PWR, RUN, ERR, SD card access, BAT, SL1 and I/O state; Electrical connection: Mini B USB 2.0 for programming, removable screw terminal blocks for inputs, outputs, power supply and serial link; Maximum cable distance: Unshielded cable <50 m input, <150 m output; Shielded cable <10 m fast and high speed input; Insulation: Non-insulated between inputs; Between input and internal logic 500 VAC; Between fast input and internal logic 500 VAC; Between input groups 500 VAC; Between output and internal logic 500 VAC; Between output groups 500 VAC; Between supply and internal logic 500 VDC; Marking: CE; Mounting support: Top hat TH35-15 rail IEC 60715, Top hat TH35-7.5 plate or panel with fixing kit IEC 60715;
