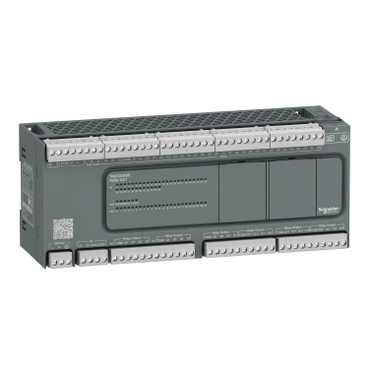

TM200C60R

TM200C60R

$427.37

This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This logic controller provides 4 fast inputs, 4 high speed inputs, 28 regular inputs and 24 relay outputs, normally opened relay output. It is a Modicon logic controller with an input voltage of 24V DC, a discrete output voltage of 24V DC, 220V AC and an output current of 2A. Easy to maintain and update with its micro SD memory card. Integrated connections are mini B USB 2.0, serial link 1 and RS485, serial link 2 and RS232/RS485, ethernet Modbus TCP/IP, and serial link 2 and RS485. It is a controller with an internal flash of 512byte and a micro SD card of 32GB. It is an IP20 rated product. Its dimensions are 22.5cm (Width) x 7cm (Depth) x 9cm (Height). It weighs 0.7. Designed for textile, machine tool, packaging, material handling, pumping, hoisting, electronic assembly machines. This product is certified by CE, CSA, IACS E10, RCM and CULus. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.

Datasheet

datasheet

1 in stock

SKU: TM200C60R Category:

Description

TM200C60R – Controller M200 60I/O relay

This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This logic controller provides 4 fast inputs, 4 high speed inputs, 28 regular inputs and 24 relay outputs, normally opened relay output. It is a Modicon logic controller with an input voltage of 24V DC, a discrete output voltage of 24V DC, 220V AC and an output current of 2A. Easy to maintain and update with its micro SD memory card. Integrated connections are mini B USB 2.0, serial link 1 and RS485, serial link 2 and RS232/RS485, ethernet Modbus TCP/IP, and serial link 2 and RS485. It is a controller with an internal flash of 512byte and a micro SD card of 32GB. It is an IP20 rated product. Its dimensions are 22.5cm (Width) x 7cm (Depth) x 9cm (Height). It weighs 0.7kg. Designed for textile, machine tool, packaging, material handling, pumping, hoisting, electronic assembly machines. This product is certified by CE, CSA, IACS E10, RCM and CULus. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.

Rated supply voltage: 220 V AC

Discrete I/O number: 60

Discrete input number: 4 fast input; 4 high speed input; 28 regular input

Discrete output number: 24 relay

Discrete input voltage: 24 V DC

Discrete output voltage: 24 V DC; 220 V AC

Discrete output current: 2 A

Power consumption: 61 to 74 VA at 100 to 240 V AC (with max I/O)

Dimensions (W x D x H): 22.5cm x 7cm x 9cm

Weight: 0.7kg

IP degree of protection: IP20

Product certifications: CE

Standards: IEC 61131-2; IEC 61010-2-201

Mounting support: Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715

Customs Tariff Code: 85371090

Post Views: 3,459

Additional information

Weight0.7 kg
Dimensions7 × 22.5 × 9 cm
Product ID

TM200C60R

Customs Tariff Code

85371090

Range Name

Modicon Easy M200

Product Title

Controller M200 60I/O relay

Rated Supply Voltage

220 V AC

Discrete IO Number

60

Discrete Input Number

I2…I5: 4 fast input; I0, I1, I6, I7: 4 high speed input; I8…I35: 28 regular input

Discrete Output Number

24 relay

Discrete Input Voltage

24 V

Discrete Input Voltage Type

DC

Discrete Input Current

7 mA for input

Discrete Input Logic

Sink or source (positive/negative) type 1 conforming to IEC 61131-2

Discrete Output Voltage

24 V DC; 220 V AC

Discrete Output Current

2 A

Discrete Output Type

Relay normally open

Power Consumption VA

61…74 VA at 100…240 V AC (with max I/O)

Maximum Number Of IO Expansion Module

4 with 128 discrete output(s) for transistor output; 4 with 88 discrete output(s) for relay output

Supply Voltage Limits

85…264 V

Inrush Current

50 A

Voltage State 1 Guaranteed

>= 15 V for input

Voltage State 0 Guaranteed

<= 5 V for input

Input Impedance

3.3 kOhm for discrete input

Response Time

10 ms turn-on, Q0…Q23 terminal(s) for output; 10 ms turn-off, Q0…Q23 terminal(s) for output; 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input; 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input; 100 µs turn-off, I2…I5 terminal(s) for fast input; 35 µs turn-on, I2…I5 terminal(s) for fast input; 100 µs turn-off, I8…I13 terminal(s) for regular input; 35 µs turn-on, I8…I13 terminal(s) for regular input; 125 µs turn-off, I14…I35 terminal(s) for regular input; 55 µs turn-on, I14…I35 terminal(s) for regular input

Configurable Filtering Time

0 ms for input; 3 ms for input; 12 ms for input

Output Voltage Limits

30 V DC; 250 V AC

Maximum Current Per Output Common

4 A at COM 2; 4 A at COM 0; 4 A at COM 1; 4 A at COM 3; 4 A at COM 4; 4 A at COM 5

Electrical Durability

100000 cycles AC-12, 240 V, 480 VA, resistive; 100000 cycles DC-12, 24 V, 48 W, resistive

Switching Frequency

0.1 Hz with maximum load

Mechanical Durability

20000000 cycles for relay output

Minimum Load

10 mA at 5 V DC for relay output

Memory Capacity

512 byte internal flash for backup of programs

Data Storage Equipment

32 GB micro SD card (optional)

Battery Type

BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s)

Backup Time

3 years at 25 °C (by interruption of power supply)

Execution Time For 1 KInstruction

0.3 ms for event and periodic task

Execution Time Per Instruction

0.2 µs Boolean

Execution Time For Event Task

60 µs response time

Clock Drift

<= 90 s/month at 25 °C

Regulation Loop

Adjustable PID regulator up to 14 simultaneous loops

Control Signal Type

Quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode); Pulse/direction at 100 kHz for fast input (HSC mode); Single phase at 100 kHz for fast input (HSC mode); CW/CCW at 100 kHz for fast input (HSC mode)

Counting Input Number

4 fast input (HSC mode) at 100 kHz 32 bits

Integrated Connection Type

USB port with mini B USB 2.0 connector; Non isolated serial link serial 1 with terminal block connector and RS485 interface; Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface; Ethernet Modbus TCP/IP Ethernet with RJ45 connector and 1 Ethernet port 10/100BASE-T interface; Isolated serial link serial 2 with terminal block connector and RS485 interface

Transmission Rate

1.2…115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485; 1.2…115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232; 12 Mbit/s for USB

Communication Port Protocol

USB port: USB – SoMachine-Network; Non isolated serial link: Modbus master/slave – RTU/ASCII or SoMachine-Network

Local Signalling

1 LED (green) for PWR; 1 LED (green) for RUN; 1 LED (red) for module error (ERR); 1 LED (green) for SD card access (SD); 1 LED (red) for BAT; 1 LED (green) for SL1; 1 LED per channel (green) for I/O state

Electrical Connection

Mini B USB 2.0 connector for a programming terminal; removable screw terminal block for inputs; removable screw terminal block for outputs; removable screw terminal block, 4 terminals for connecting the serial link1; removable screw terminal block, 3 terminals for connecting the 100-240 V AC power supply

Maximum Cable Distance Between Devices

Unshielded cable: <50 m for input; Shielded cable: <10 m for fast input; Shielded cable: <10 m for high speed input; Unshielded cable: <150 m for output

Insulation

Non-insulated between inputs; Between output and internal logic at 1780 V AC; Between output groups at 1780 V AC; Between supply and internal logic at 1780 V AC; Between input and internal logic at 500 V AC; Between fast input and internal logic at 500 V AC; Between input groups at 500 V AC

Sensor Power Supply

24 V DC at 300 mA supplied by the controller

Marking

CE

Mounting Support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715

IP Degree Of Protection

IP20

Product Certifications

CE

Standards

IEC 61131-2; IEC 61010-2-201

Electromagnetic Compatibility

Electrostatic discharge immunity test – test level: 8 kV (air discharge) conforming to IEC 61000-4-2; Electrostatic discharge immunity test – test level: 6 kV (contact discharge) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields – test level: 10 V/m (80 MHz…3 GHz) conforming to IEC 61000-4-3; Magnetic field at power frequency – test level: 30 A/m conforming to IEC 61000-4-8; Electrical fast transient/burst immunity test – test level: 2 kV (power lines) conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test – test level: 2 kV (relay output) conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test – test level: 1 kV (I/O) conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test – test level: 1 kV (serial link) conforming to IEC 61000-4-4; 1.2/50 µs shock waves immunity test – test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test – test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test – test level: 2 kV (relay output) conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test – test level: 1 kV (I/O) conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test – test level: 1 kV (shielded cable) conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test – test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test – test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5; Conducted RF disturbances – test level: 10 V (0.15…80 MHz) conforming to IEC 61000-4-6; Conducted emission – test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011; Conducted emission – test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011; Radiated emission – test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011; Radiated emission – test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011; Electrical fast transient/burst immunity test – test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4

Shock Resistance

15 gn for 11 ms; 30 gn for 6 ms

Immunity To Microbreaks

10 ms

Vibration Resistance

3.5 mm at 5…8.4 Hz on symmetrical rail; 1 gn at 8.4…150 Hz on symmetrical rail; 3.5 mm at 5…8.7 Hz on panel mounting; 2 gn at 8.7…150 Hz on panel mounting

Relative Humidity

10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage)

Ambient Air Temperature For Operation

0…55 °C (horizontal installation)

Ambient Air Temperature For Storage

-25…70 °C

Pollution Degree

<= 2

Operating Altitude

0…2000 m

Storage Altitude

0…3000 m

Unit Type Of Package 1

PCE

Number Of Units In Package 1

1

Package 1 Height

9.467

Package 1 Width

13.692

Package 1 Length

23.764

Package 1 Weight

900.5

Unit Type Of Package 2

S03

Number Of Units In Package 2

9

Package 2 Height

30

Package 2 Width

30

Package 2 Length

40

Package 2 Weight

8629.5

Unit Type Of Package 3

P12

Number Of Units In Package 3

216

Package 3 Height

95

Package 3 Width

80

Package 3 Length

120

Package 3 Weight

216108
