Description

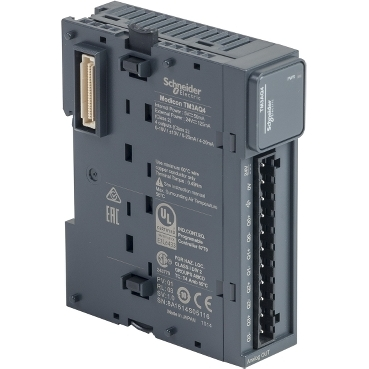

TM3AQ4 – analog output module, Modicon TM3, 4 outputs, screw, 24V DC
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue output module provides 4 outputs with 11bit + sign and 12bit resolution. It is an output module with a rated supply voltage of 24V DC and a current consumption of 125mA at 24V DC via external supply full load. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input.
There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs and supply. It is an IP20 rated product.
Its dimensions are 2.36 cm width x 7.0 cm depth x 9.0 cm height. It weighs 0.115 kg. This product is certified by CE and meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards.
This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controllers. It supports top hat type TH35-15 and TH35-7.5 rails conforming to IEC 60715 and plate or panel mounting with fixing kit.
Modicon TM3 expansion modules feature a simple interlocking assembly mechanism with a bus expansion connector to distribute data and power supply when assembled with logic controllers.
Main characteristics: 4 analogue outputs (current 4…20 mA, 0…20 mA; voltage 0…10 V, -10…10 V), resolutions up to 12 bits, load type resistive, load impedance 1000 Ohm voltage, 300 Ohm current, stabilisation time 1 ms, conversion time 1 ms + 1 ms per channel + 1 controller cycle time, absolute accuracy error +/- 1 % full scale typically.
Rated supply voltage is 24 V DC with limits 20.4 to 28.8 V. Current consumption varies by load: 40 mA at 5 V DC via bus no load, 125 mA at 24 V DC external supply full load.
Environmental and compliance data: IP20 protection, pollution degree 2, operation temperature -10…55 °C horizontal or -10…35 °C vertical installation, storage temperature -25…70 °C, relative humidity 10–95 % without condensation.
Packaging: recycled cardboard content minimum 70% (50% in US), no single use plastic used. Returned packaging is recyclable. This product does not participate in a take-back program.
Country of origin: JP (Japan). Customs Tariff Code: 853710.
