| Weight | 0.115 kg |
|---|
| Dimensions | 7 × 2.36 × 9 cm |
|---|

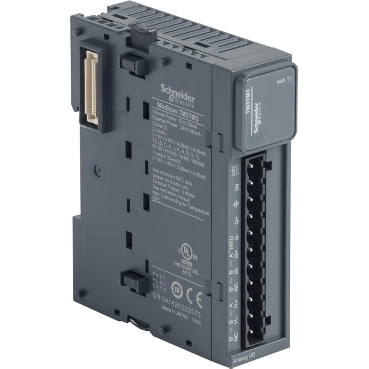

| Product Title | TM3TM3 – analog IO module, Modicon TM3, 2 analog or temperature inputs, 1 analog output, screw, 24V DC |
|---|
| Range Name | Modicon TM3 Expansion I/O modules for M221, M241, M251 |
|---|
| Keywords | TM3TM3, Modicon TM3 Expansion I/O modules for M221, M241, M251 |
|---|
| Compatibility Controllers | Modicon M221, Modicon M241, Modicon M251, Modicon M262 |
|---|
| Analogue Input Number | 2 |
|---|
| Analogue Input Types | current 4…20 mA, current 0…20 mA, voltage 0…10 V, voltage – 10…10 V, thermocouple – 200…1000 °C thermocouple J, thermocouple – 200…1300 °C thermocouple K, thermocouple 0…1760 °C thermocouple R, thermocouple 0…1760 °C thermocouple S, thermocouple 0…1820 °C thermocouple B, thermocouple – 200…400 °C thermocouple T, thermocouple – 200…1300 °C thermocouple N, thermocouple – 200…800 °C thermocouple E, thermocouple 0…2315 °C thermocouple C, Ni 100/Ni 1000 temperature probe – 60…180 °C, Pt 100 temperature probe – 200…850 °C, Pt 1000 temperature probe – 200…600 °C |
|---|
| Analogue Output Number | 1 |
|---|
| Analogue Output Types | Current 4…20 mA, Current 0…20 mA, Voltage 0…10 V, Voltage – 10…10 V |
|---|
| Analogue Input Resolution | 16 bits, 15 bits + sign |
|---|
| Permissible Continuous Overload | 13 V voltage, 40 mA current |
|---|
| Input Impedance | <= 50 Ohm current, >= 1 MOhm voltage, >= 1 MOhm thermocouple, >= 1 MOhm temperature probe |
|---|
| Analogue Output Resolution | 12 bits |
|---|
| LSB Value | 0.15 mV 0…10 V voltage, 0.30 mV – 10…10 V voltage, 0.30 µA 0…20 mA current, 0.244 µA 4…20 mA current, 0.1 °C temperature probe, 0.1 °C thermocouple, 2.44 mV 0…10 V voltage, 4.88 mV – 10…10 V voltage, 4.88 µA 0…20 mA current, 3.91 µA 4…20 mA current |
|---|
| Load Type | Resistive |
|---|
| Load Impedance Ohmic | 1 kOhm voltage, 300 Ohm current |
|---|
| Stabilisation Time | 1 ms |
|---|
| Conversion Time | 100 ms + 100 ms per channel + 1 controller cycle time thermocouple, 100 ms + 100 ms per channel + 1 controller cycle time temperature probe, 10 ms + 10 ms per channel + 1 controller cycle time voltage/current |
|---|
| Sampling Duration | 10 ms voltage/current, 100 ms voltage/current, 100 ms thermocouple, 100 ms temperature probe |
|---|
| Absolute Accuracy Error | +/- 6 °C at 25 °C for thermocouple R, S 0…200 °C, +/- 0.4 % of full scale at 25 °C for thermocouple K – 200…0 °C, +/- 0.4 % of full scale at 25 °C for thermocouple J – 200…0 °C, +/- 0.4 % of full scale at 25 °C for thermocouple E – 200…0 °C, +/- 0.4 % of full scale at 25 °C for thermocouple T – 200…0 °C, +/- 0.4 % of full scale at 25 °C for thermocouple N – 200…0 °C, +/- 0.1 % of full scale at 25 °C for analogue input voltage/current, +/- 0.1 % of full scale at 25 °C for thermocouple C 0…2315 °C, +/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe, +/- 0.1 % of full scale at 25 °C for thermocouple R, S 200…1760 °C, +/- 0.1 % of full scale at 25 °C for thermocouple B 300…1820 °C, +/- 0.1 % of full scale at 25 °C for thermocouple K 0…1300 °C, +/- 0.1 % of full scale at 25 °C for thermocouple J 0…1000 °C, +/- 0.1 % of full scale at 25 °C for thermocouple E 0…800 °C, +/- 0.1 % of full scale at 25 °C for thermocouple T 0…400 °C, +/- 0.1 % of full scale at 25 °C for thermocouple N 0…1300 °C, +/- 0.1 % of full scale at 25 °C for analogue output voltage/current |
|---|
| Temperature Drift | +/- 0.006 %FS/°C |
|---|
| Repeat Accuracy | +/-0.5 %FS input, +/- 0.4 %FS output |
|---|
| Non Linearity | +/- 0.01 %FS analog output, +/- 0.1 %FS analog input |
|---|
| Output Ripple | 20 mV |
|---|
| Cross Talk | <= 1 LSB |
|---|
| Rated Supply Voltage | 24 |
|---|
| Supply Voltage Limits | 20.4…28.8 V |
|---|
| Type of Cable | Twisted shielded pairs cable <30 m input/output |
|---|
| Current Consumption | 55 mA 24 V DC via external supply no load, 55 mA 5 V DC via bus connector no load, 60 mA 5 V DC via bus connector full load, 80 mA 24 V DC via external supply full load |
|---|
| Local Signalling | 1 LED (green) for PWR |
|---|
| Electrical Connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs, outputs and supply |
|---|
| Insulation | Between input and supply 1500 V AC, Between input and internal logic 500 V AC, Between output and supply 1500 V AC, Between output and internal logic 500 V AC |
|---|
| Marking | CE |
|---|
| Surge Withstand | 1 kV power supply common mode IEC 61000-4-5, 0.5 kV power supply differential mode IEC 61000-4-5, 1 kV I/O common mode IEC 61000-4-5, 0.5 kV I/O differential mode IEC 61000-4-5 |
|---|
| Mounting Support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
|---|
| Standards | IEC 61131-2 |
|---|
| Product Certifications | CE, UKCA, RCM, EAC, cULus, cULus HazLoc |
|---|
| Resistance to Electrostatic Discharge | 8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2 |
|---|
| Resistance to Electromagnetic Fields | 9.1 V/m (10 V/m) 80 MHz…1 GHz IEC 61000-4-3, 2.7 V/m (3 V/m) 1.4 GHz…2 GHz IEC 61000-4-3, 0.9 V/m (1 V/m) 2 GHz…3 GHz IEC 61000-4-3 |
|---|
| Resistance to Magnetic Fields | 98.4 A/m (30 A/m) IEC 61000-4-8 |
|---|
| Resistance to Fast Transients | 1 kV IEC 61000-4-4 I/O |
|---|
| Resistance to Conducted Disturbances | 10 V 0.15…80 MHz IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
|---|
| Electromagnetic Emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011, Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
|---|
| Immunity to Microbreaks | 10 ms |
|---|
| Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) horizontal installation, 14…95 °F (-10…35 °C) vertical installation |
|---|
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
|---|
| Relative Humidity | 10…95 %, without condensation in operation, 10…95 %, without condensation in storage |
|---|
| IP Degree of Protection | IP20 |
|---|
| Pollution Degree | 2 |
|---|
| Operating Altitude m | 2000 |
|---|
| Storage Altitude m | 3000 |
|---|
| Vibration Resistance | 3.5 mm 5…8.4 Hz DIN rail, 3 gn 8.4…150 Hz DIN rail |
|---|
| Shock Resistance | 15 gn 11 ms |
|---|
| Category | US10MSX22533 |
|---|
| Discount Schedule | 0MSX |
|---|
| Returnability | Yes |
|---|
| Country of Origin | JP |
|---|
| Unit Type of Package 1 | PCE |
|---|
| Nbr of Units in Pkg | 1 |
|---|
| Package 1 Height cm | 7.611 |
|---|
| Package 1 Width cm | 10.688 |
|---|
| Package 1 Length cm | 12.753 |
|---|
| Package 1 Weight g | 220 |
|---|
| Unit Type of Package 2 | S04 |
|---|
| Number of Units in Package 2 | 42 |
|---|
| Package 2 Height cm | 30 |
|---|
| Package 2 Width cm | 40 |
|---|
| Package 2 Length cm | 60 |
|---|
| Package 2 Weight kg | 10.421 |
|---|
| Unit Type of Package 3 | P12 |
|---|
| Number of Units in Package 3 | 504 |
|---|
| Package 3 Height cm | 105 |
|---|
| Package 3 Width cm | 120 |
|---|
| Package 3 Length cm | 80 |
|---|
| Package 3 Weight kg | 130 |
|---|
| Customs Tariff Code | 85371098 |
|---|
