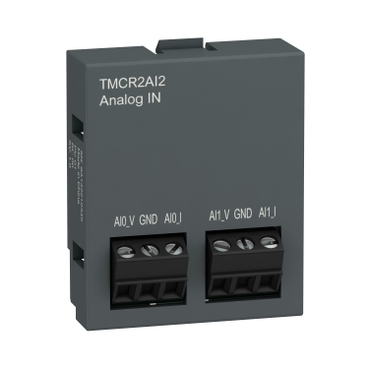

TMCR2AI2 – cartridge M200 – 2 analog current inputs
This product is part of the Modicon Easy M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This analogue input cartridge provides 2 inputs with 12bit input resolution. It is an analogue input cartridge with a signal current of 4mA to 20mA, 0mA to 20mA and a signal voltage of 0V to 10V. The maximum twisted shielded pairs cable distance between devices is <30 m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal blocks for electrical connection with pitch 0.381 cm adjustment for inputs. Its dimensions are 3.5 cm (Width) x 1.5 cm (Depth) x 4.1 cm (Height). It weighs 0.012 kg. This product is compatible with Modicon Easy M200 logic controllers.
Modicon Easy M200 controllers are entry-level products perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Modicon Easy M200 logic controllers, the best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
Range of product: Easy Modicon M200
Product or component type: Analogue input cartridge
Product compatibility: Easy Modicon M200
Analogue input number: 2
Analogue input type: current 4…20 mA, current 0…20 mA, voltage 0…10 V
Analogue input resolution: 12 bits
LSB value: 2.44 mV 0…10 V voltage, 4.88 µA 0…20 mA current, 3.91 µA 4…20 mA current
Conversion time: 20 ms
Sampling duration: 10 ms
Absolute accuracy error: ± 0.1 % of full scale at 25 °C, ± 1 % of full scale
Temperature drift: ± 0.02 %FS/°C
Repeat accuracy: ± 0.5 %FS
Non-linearity: ± 0.01 %FS
Cross talk: ≤ 1 LSB
Type of cable: Twisted shielded pairs cable
Electrical connection: 3 x 1.5 mm² 2 screw terminal blocks with pitch 0.381 cm adjustment for inputs
Maximum cable distance between devices: Twisted shielded pairs cable: <30 m for input
Insulation: Non-insulated between analogue input and internal logic
Dimensions (W x D x H): 3.5 cm x 1.5 cm x 4.1 cm
Net weight: 0.012 kg
Permissible continuous overload: 13 V analogue input type voltage, 40 mA analogue input type current
Input impedance: ≤ 250 Ohm current, ≥ 1 MOhm voltage
Immunity to microbreaks: 10 ms
Packaging Unit 1 (PCE): 1 unit, Dimensions (H x W x L): 3.589 cm x 4.772 cm x 7.056 cm, Weight: 30 g
Packaging Unit 2 (S02): 75 units, Dimensions (H x W x L): 15 cm x 30 cm x 40 cm, Weight: 2.815 kg
Packaging Unit 3 (P12): 2400 units, Dimensions (H x W x L): 100 cm x 125 cm x 55 cm, Weight: 85 kg
Total lifecycle carbon footprint CO2 equivalent: 7 kg
Packaging made with recycled cardboard: Yes
Packaging without single use plastic: Yes
EU RoHS Directive compliance: Pro-active compliance (Product out of EU RoHS legal scope)
REACh Regulation: REACh Declaration
Recyclability potential: 0 %
End of life manual availability: End of Life Information
Take-back program: No
Customs Tariff Code: 85371010
