Description

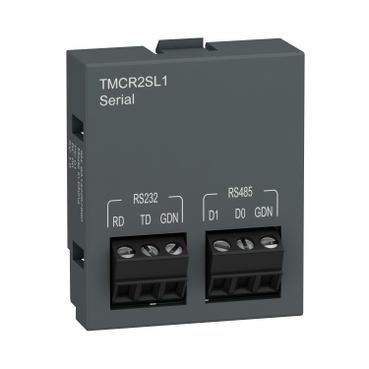

TMCR2SL1 – cartridge M200 – 1 serial line – communication extension
This product is part of the Easy Modicon M200 range, an offer of logic controllers for up to 168 IO. This optional cartridge provides one communication channel to M200 controllers. The additional communication channel is a RS232C or RS485 serial link. The Serial link cartridge provides one additional communication channel to M200 controllers. Its data transmission rate varies from 1.2 to 115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 cm on RS485 and for bus length of 3 cm on RS232C. The cartridge connection type is screw terminal block for RS232 and RS485. It is 4.1 cm high, 1.5 cm deep, and 3.5 cm wide. It weighs 0.012 kg. This optional cartridge provides 1 SL communication channel to the controller. This product is marked CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This cartridge is an optional part of Modicon M200 logic controller. It installs in a specific slot on controller when removing the cartridge cover. Entry-level PLC perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
Product Type: Serial line cartridge
Product Compatibility: Easy Modicon M200
Integrated Connection Type: Non isolated serial link – screw terminal block for RS232, Non isolated serial link – screw terminal block for RS485
Transmission Rate: 1.2…115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 cm for RS485, 1.2…115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 cm for RS232C
Communication Port Protocol: Non isolated serial link: Modbus master/slave – RTU/ASCII or SoMachine-Network
Insulation: Non-insulated between lines and internal logic
Dimensions: Height: 4.1 cm, Depth: 1.5 cm, Width: 3.5 cm
Net Weight: 0.012 kg
Packaging Unit 1: 1 PCE, dimensions 4.6 cm x 7.0 cm x 3.5 cm, weight 0.02 kg
Packaging Unit 2: 75 S02, dimensions 15 cm x 30 cm x 40 cm, weight 3.07 kg
Packaging Unit 3: 1200 P06, dimensions 75 cm x 60 cm x 80 cm, weight 57 kg
Environmental Data: Total lifecycle Carbon footprint 28 kg CO2 equivalent. Packaging made with recycled cardboard (minimum 70%). Packaging without single use plastic. EU RoHS directive: Pro-active compliance (Product out of EU RoHS legal scope). REACh compliant. Recyclability potential 0%. End of life manual available. Not included in take-back program.
Customs Tariff Code: 85371020
