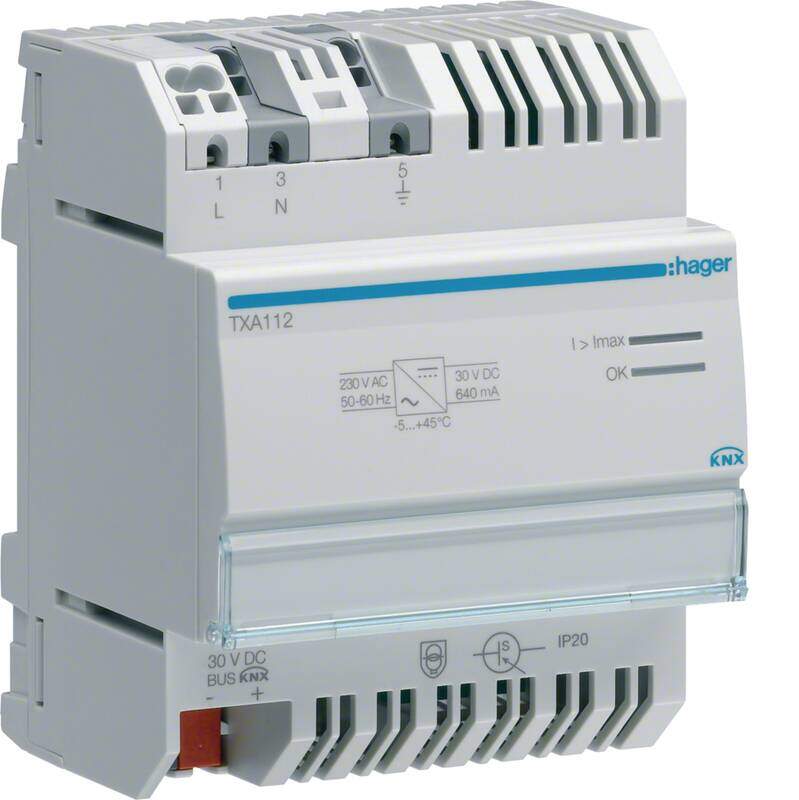

Description
Technical characteristics
-
Architecture
-
Bus system
- EIB
-
Fixing mode
- Din-Rail
-
-
Configuration
-
Number of modules
- 4
-
-
Connectivity
-
Bus lines
- 1
-
-
Main electrical features
-
Frequency
- 50/60 Hz
-
-
Voltage
-
Output voltage
- 30 V
-
Output voltage
- 28…32 V
-
Filtered output voltage
- 30V +/- 2V
-
-
Electric current
-
Output current
- max. 640 mA
-
Ouput intensity
- 640 mA
-
-
Dimensions
-
Depth of installed product
- 64 mm
-
Height of installed product
- 90 mm
-
Length
- 64 mm
-
Width of installed product
- 72 mm
-
-
Power
-
Total power loss under IN
- 15 W
-
-
Materials
-
Colour
- stone grey
-
RAL colour
- RAL 7035 – Light grey
-
-
Connection
-
Connection cross-sect. flexible conductor
- 0,75 / 2,5mm²
-
Connection cross-sect. rigid cable
- 0,75 / 2.5mm²
-
Conductor cross-section (flexible)
- 0,75…2,5 mm²
-
Conductor cross-section (rigid)
- 0,75…2,5 mm²
-
Type of connection
- quick connect
-
-
Equipment
-
Number of outputs
- 1
-
-
Use
-
Differentiation characteristic 1 – Sales
- with labelling field
-
-
Safety
-
Protection index IP
- IP20
-
-
Use conditions
-
Operating temperature
- -5…45 °C
-
Storage/transport temperature
- -20…70 °C
-
-
Identification
-
Search words
- KNX
- Control intuitively
- EIB
-
