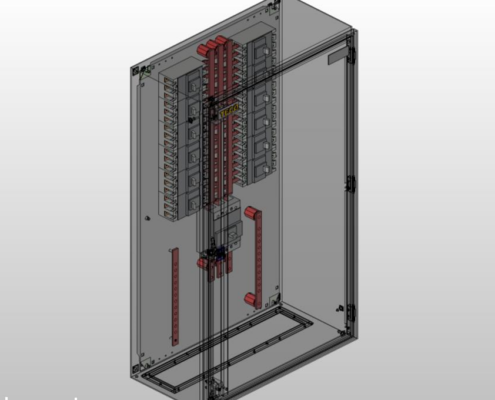

Standard Features:

Incomer up to 250A 3P 36KA Adjustable
12xFeeders up to 100A 3P 25KA

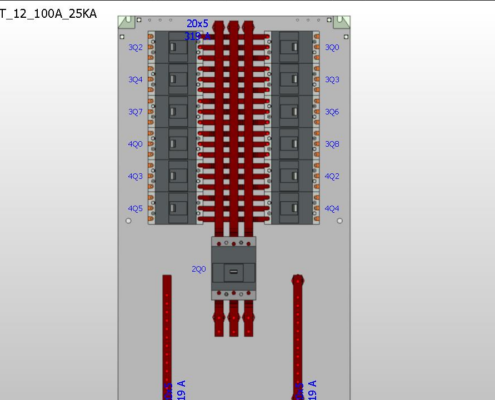

Busbar 20×5

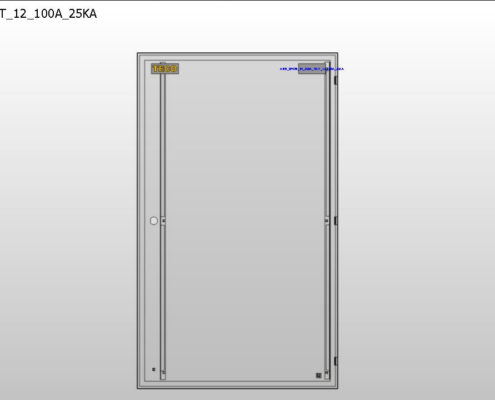

Suitable Enclosure IP55
For breakers <= 160A direct cable connection up to 35mm2 For breakers >= 200 busbar connection is fabricated for cable termination

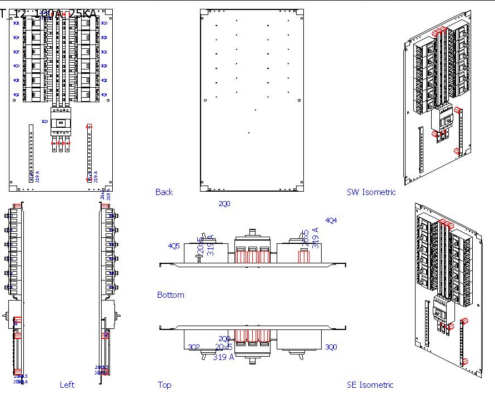

Components List:

1 X ABB.1SDA068059R1: XT3N 250 TMD 250-2500 3p F F 250AT/250AF
12 X ABB.1SDA068759R1: A1C 125 TMF 32-400 3p F F FIXED

———————————————
Approximate Weight: 60.28 KG

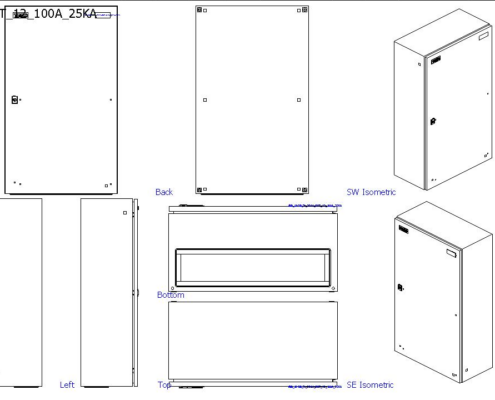

Approx Dimensions (WxHxD): 60x100x30 cm
———————————————
Current LME Price: 9957 USD/Ton
1 EURO = 1.07 USD
Last update date: 03/05/2024
———————————————
