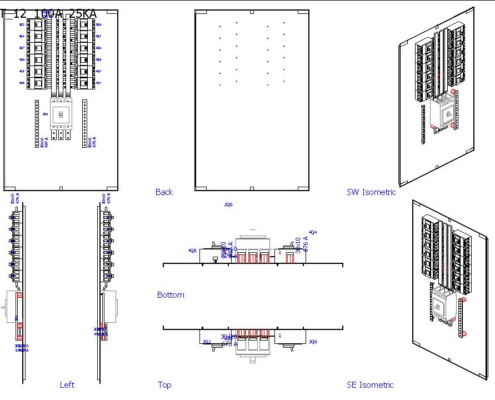

Standard Features:
Incomer up to 630A 3P 50KA Adjustable
12xFeeders up to 100A 3P 25KA

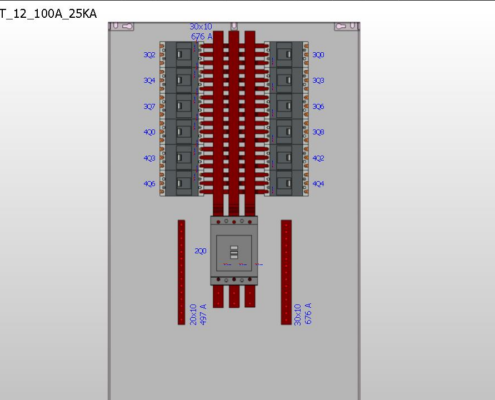

Busbar 30×10

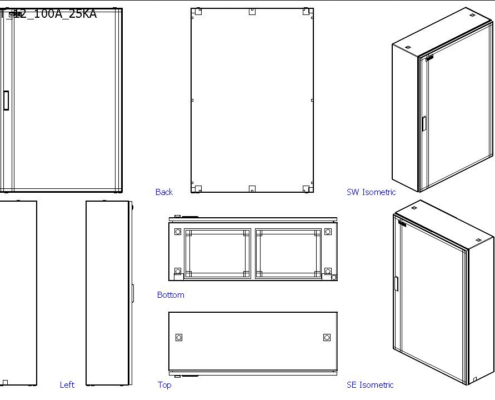

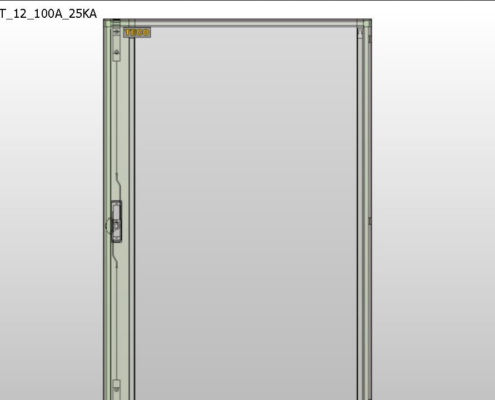

Suitable Enclosure IP55
For breakers <= 160A direct cable connection up to 35mm2
For breakers >= 200 busbar connection is fabricated for cable termination
Components List:
1 X ABB.1SDA100425R1: TXT5S 630 Ekip Dip LS/I In=630 3p F F 630AT/630AF ADJUSTABLE
12 X ABB.1SDA066719R1: A1C 125 TMF 100-1000 3p F F
———————————————
Approximate Weight: 101.59 KG
Approx Dimensions (WxHxD): 80x120x30 cm
———————————————
Current LME Price: 9957 USD/Ton
1 EURO = 1.07 USD
Last update date: 03/05/2024
———————————————
