Description

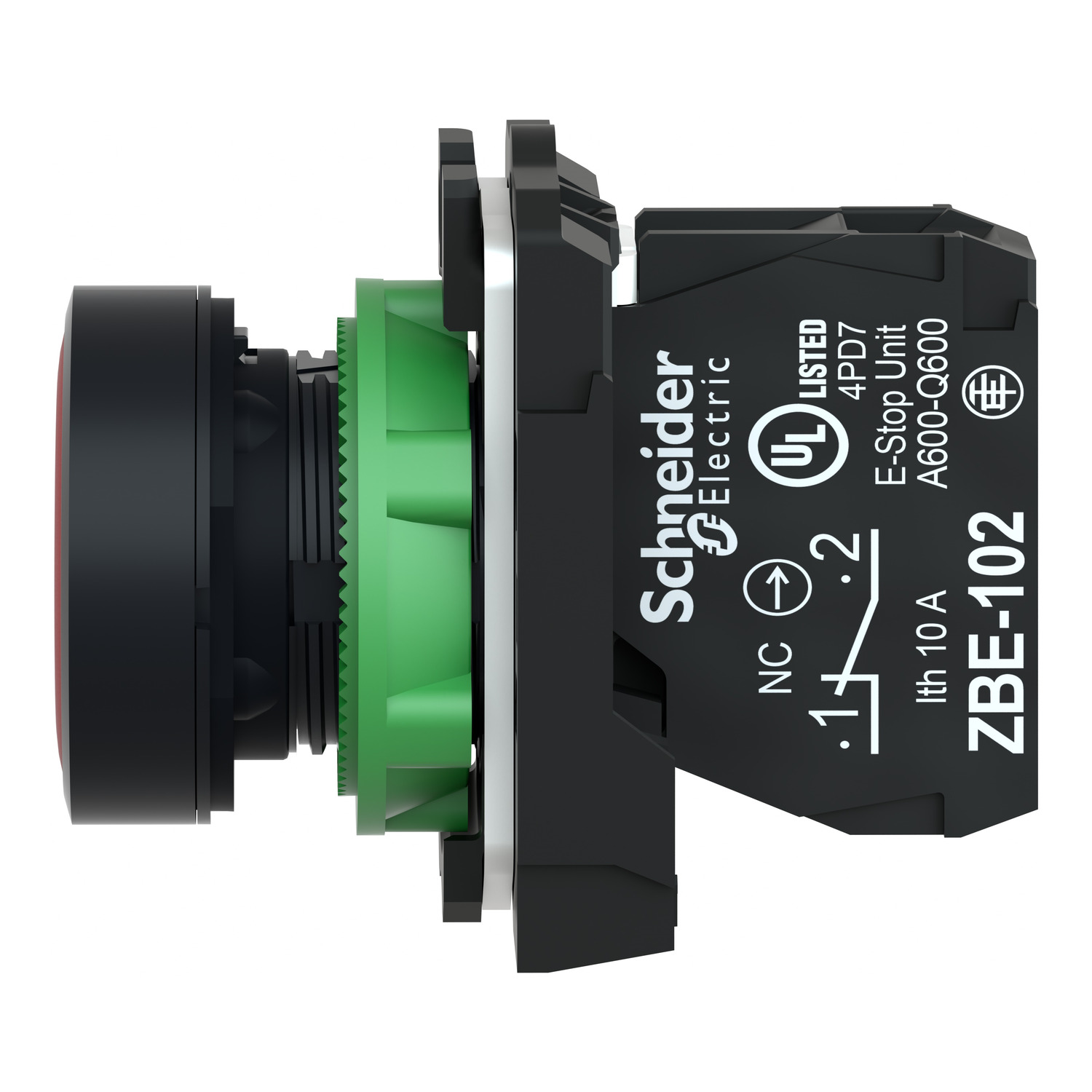

XB5AA42 – Push button, Harmony XB5, plastic, flush, red, 22mm, spring return, unmarked, 1NC
This Harmony XB5 push button features a dark grey plastic bezel and a red flush, unmarked operator profile. It has 1 NC contact type with slow-break operation and screw clamp terminals for connection. Suitable for mounting diameter of 2.25 cm and round signaling unit head shape.
Dimensions: Height 4.2 cm, Width 3.0 cm, Depth 5.2 cm. Net weight is 37 g.
Rated operational current includes 3 A at 240 V AC-15, 6 A at 120 V AC-15, various DC ratings, and 1.2 A at 600 V AC-15. The product withstands rated insulation voltage of 600 V and impulse withstand voltage of 6 kV.
Mechanical durability is 10000000 cycles; electrical durability up to 1000000 cycles under various loads. Operating travel is 1.5 mm (NC changing state) with total travel 4.3 mm; operating force is 3.5 N. Tightening torque is 0.8 to 1.2 N.m. Contacts material is a silver alloy (Ag/Ni).
It has IP66, IP67, IP69, and IP69K protection degrees and complies with standards IEC 60947-1, IEC 60947-5-1 among others. It resists vibration at 5 gn and shock 30 gn (18 ms) and 50 gn (11 ms).
Environmental ratings include storage and operation temperatures from -40 to 70 °C. The product has certifications including DNV, CSA, UL Listed, Lloyds, and BV.
Packaging dimensions for single unit: Height 8.8 cm, Width 3.4 cm, Length 5.4 cm; weight 37 g. Bulk packages and pallets with larger dimensions and weights are also available.
Warranty period is 18 months. Customs Tariff Code is 8536508000.
