| الوزن | 0.27 كيلوجرام |
|---|
| الأبعاد | 7.9 × 8.7 × 4.7 سنتيميتر |
|---|
| Number of Poles | 3P |
|---|
| Terminal Type | Screw Terminals |
|---|

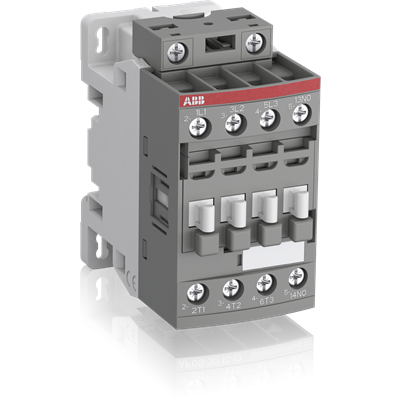

| Product ID | 1SBL137001R1310 |
|---|
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20, Coil Terminals IP20, Main Terminals IP20 |
|---|
| Customs Tariff Code | 85364900 |
|---|
| Number of Main Contacts NO | 3 |
|---|
| Number of Main Contacts NC | 0 |
|---|
| Number of Auxiliary Contacts NO | 1 |
|---|
| Number of Auxiliary Contacts NC | 0 |
|---|
| Mounting on DIN Rail | TH35-15 and TH35-7.5 (35 x 15 mm and 35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
|---|
| Mounting by Screws | 2 x M4 Screws Placed Diagonally |
|---|
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1 |
|---|
| NEMA Size | 00 |
|---|
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
|---|
| Pollution Degree | 3 |
|---|
| Rated Operational Voltage Auxiliary Circuit V | 690 |
|---|
| Rated Operational Voltage Main Circuit V | 690 |
|---|
| Rated Frequency Hz | 50 / 60 |
|---|
| Conventional Free air Thermal Current Ith A | 35 (acc. to IEC 60947-4-1, Open Contactors Ψ = 40 °C), 16 (acc. to IEC 60947-5-1, Ψ = 40 °C) |
|---|
| Rated Operational Current AC-1 Ie A | 25 (40 °C), 25 (60 °C), 22 (70 °C) (690 V) |
|---|
| Rated Operational Current AC-3 Ie A | 9 (415 V, 60 °C), 9 (440 V, 60 °C), 9.5 (500 V, 60 °C), 7 (690 V, 60 °C) |
|---|
| Rated Operational Current AC-3e Ie A | 9 (415 V, 60 °C), 9 (440 V, 60 °C), 9.5 (500 V, 60 °C), 7 (690 V, 60 °C) |
|---|
| Rated Operational Current AC-15 Ie A | 2 (500 V), 2 (690 V), 6 (24 / 127 V), 4 (220 / 240 V), 3 (400 / 440 V) |
|---|
| Rated Operational Current DC-1 Ie A | 10 (110 V 1-Pole, 40-70 °C), 25 (110 V 2 Poles in Series, 40-60 °C), 22 (110 V 2 Poles in Series, 70 °C) |
|---|
| Rated Operational Current DC-3 Ie A | 6 (110 V 1-Pole, 40-70 °C), 25 (110 V 2 Poles in Series, 40-60 °C), 22 (110 V 2 Poles in Series, 70 °C) |
|---|
| Rated Operational Current DC-5 Ie A | 4 (110 V 1-Pole, 40-70 °C), 10 (110 V 2 Poles in Series, 40-60 °C), 22 (110 V 3 Poles in Series, 70 °C) |
|---|
| Rated Operational Current DC-13 Ie A and W | 6 A / 144 W (24 V), 2.8 A / 134 W (48 V), 1 A / 72 W (72 V), 0.55 A / 60 W (110 V) |
|---|
| Rated Operational Power AC-3 kW | 4 (400-440 V), 5.5 (500-690 V), 2.2 (220-240 V) |
|---|
| Rated Operational Power AC-3e kW | 4 (415-440 V), 5.5 (500-690 V), 2.2 (220-240 V) |
|---|
| Rated Short-time Withstand Current Low Voltage A 40C Free Air | 150 (10 s), 35 (15 min), 60 (1 min), 300 (1 s), 80 (30 s), 140 (0.1 s), 100 (1 s) |
|---|
| Maximum Breaking Capacity A | 250 (cos phi=0.45 at 440 V), 106 (cos phi=0.45 at 690 V) |
|---|
| Rated Insulation Voltage V | 690 (IEC 60947-4-1), 690 (IEC 60947-5-1), 600 (UL/CSA) |
|---|
| Rated Impulse Withstand Voltage kV | 6 |
|---|
| Maximum Electrical Switching Frequency cycles per hour | 600 (AC-1), 1200 (AC-15), 300 (AC-2/AC-4), 1200 (AC-3), 900 (DC-13) |
|---|
| Maximum Mechanical Switching Frequency cycles per hour | 3600 |
|---|
| Rated Control Circuit Voltage Uc V | 100 … 250 (50 Hz, 60 Hz and DC) |
|---|
| Power Loss W | 0.1 (at 6 A per Pole), 0.8 (at Rated Operating Conditions AC-1 per Pole), 0.1 (at Rated Operating Conditions AC-3 per Pole) |
|---|
| Operate Time ms | 13 … 98 (Between Coil De-energization and NC Contact Closing), 11 … 95 (Between Coil De-energization and NO Contact Opening), 38 … 90 (Between Coil Energization and NC Contact Opening), 40 … 95 (Between Coil Energization and NO Contact Closing) |
|---|
| Connecting Capacity Main Circuit mm² | Flexible with Ferrule 0.75 … 6, Flexible with Insulated Ferrule 0.75 … 4, Flexible with Insulated Ferrule 0.75 … 2.5, Rigid Solid 1 … 4, Rigid Stranded 1 … 6 |
|---|
| Connecting Capacity Auxiliary Circuit mm² | Flexible with Ferrule 0.75 … 2.5, Flexible with Insulated Ferrule 0.75 … 1.5, Flexible with Insulated Ferrule 0.75 … 2.5, Rigid Solid 1 … 2.5, Rigid Stranded 1 … 2.5 |
|---|
| Connecting Capacity Control Circuit mm² | Flexible with Ferrule 0.75 … 2.5, Flexible with Insulated Ferrule 0.75 … 2.5, Flexible with Insulated Ferrule 0.75 … 1.5, Rigid Solid 1 … 2.5, Rigid Stranded 1 … 2.5 |
|---|
| Wire Stripping Length mm | 1 |
|---|
| Tightening Torque Nm | 1.2 (Auxiliary Circuit and Control Circuit), 1.5 (Main Circuit) |
|---|
| Continuous Current Rating NEMA A | 9 |
|---|
| Horsepower Rating NEMA hp | 1/3 (115 V AC Single Phase), 1-1/2 (200 V AC Three Phase), 1 (230 V AC Single Phase), 1-1/2 (230 V AC Three Phase), 2 (460 V AC Three Phase), 2 (575 V AC Three Phase) |
|---|
| Maximum Operating Voltage UL CSA V | 600 |
|---|
| General Use Rating UL CSA A | 25 |
|---|
| Horsepower Rating UL CSA hp | 3/4 (120 V AC Single Phase), 2 (200 … 208 V AC Three Phase), 2 (220 … 240 V AC Three Phase), 1-1/2 (240 V AC Single Phase), 5 (440 … 480 V AC Three Phase), 7-1/2 (550 … 600 V AC Three Phase) |
|---|
| Connecting Capacity Main Circuit UL CSA AWG | 16-10 (Rigid Solid and Rigid Stranded 1/2x) |
|---|
| Connecting Capacity Auxiliary Circuit UL CSA AWG | 18-14 (Rigid Solid and Rigid Stranded 1/2x) |
|---|
| Connecting Capacity Control Circuit UL CSA AWG | 18-14 (Rigid Solid and Rigid Stranded 1/2x) |
|---|
| Tightening Torque UL CSA in lb | 11 (Auxiliary Circuit and Control Circuit), 13 (Main Circuit) |
|---|
| Full Load Amps Motor Use A | 13.8 (120 V AC Single Phase), 7.8 (200 … 208 V AC Three Phase), 6.8 (220 … 240 V AC Three Phase), 10 (240 V AC Single Phase), 7.6 (440 … 480 V AC Three Phase), 9 (550 … 600 V AC Three Phase) |
|---|
| Ambient Air Temperature C | -25 … 60 (Close to Contactor Fitted with Thermal O/L Relay), -40 … 70 (Close to Contactor without Thermal O/L Relay), -60 … +80 (Close to Contactor for Storage) |
|---|
| Maximum Operating Altitude m | 3000 |
|---|
| Resistance to Shock g | Closed, Shock Direction: B1 25, Open, Shock Direction: B1 5, Shock Direction: A 30, Shock Direction: B2 15, Shock Direction: C1 25, Shock Direction: C2 25 |
|---|
| Resistance to Vibrations g | 4g Closed Position & 2g Open position 5 … 300 Hz |
|---|
| Conflict Minerals Reporting Template URL | [CMRT – Conflict Minerals Reporting Template] |
|---|
| REACH Declaration URL | [REACH – Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories] |
|---|
| RoHS Declaration URL | [RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories] |
|---|
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| SCIP China | 985c900c-1c52-441e-9ef8-189ad537734b |
|---|
| Simplified SCIP Examples | c0fe3a39-f91c-4e98-9560-ae259339e14b Belgium, 3ef78294-3403-47aa-9821-b709595ce32c Bulgaria, 55393582-02e7-4351-90ec-d7f12e1c42b1 Estonia |
|---|
| Toxic Substances Control Act TSCA URL | [Toxic Substances Control Act (TSCA) declaration for Contactors] |
|---|
| WEEE B2C B2B | Business To Business |
|---|
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
|---|
| ABB EcoSolutions | Yes |
|---|
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
|---|
| End Of Life Disassembling Instructions URL | [End of life instruction AF(S)09/12/16/26/30/38(Z)(B)(K)(RT) Contactors & NF(Z)(B)(K)(RT) Contactors relays] |
|---|
| Environmental Product Declaration EPDU URL | [Environmental Product Declaration – AF09/12/16(Z)(B) Contactors and NF(Z) Contactor relaysAF(S)09/12/16(Z)(B) Contactors and NF(Z)(B) Contactors Relays (FR)] |
|---|
| Improved Energy Efficiency for Customers | Product considered more energy-efficient compared to similar product on market or older products from the same line |
|---|
| Recyclability Rate of the Product according to EN45555 | 92.7 % |
|---|
| Certificates Examples | UL-US A2L LZGH2 Certificate of Compliance, ABS Certificate, BV Certificate, CB Certificate, CCC Certificate, CQC Certificate, Declaration of Conformity – CCC, Declaration of Conformity – CE, Declaration of Conformity – UKCA, DNV Certificate, GOST Certificate, KC Certificate, LR Certificate, RINA Certificate, RMRS Certificate, UL Certificate |
|---|
| Package Level 1 Units | box 1 piece |
|---|
| Package Level 1 Width cm | 8.7 |
|---|
| Package Level 1 Depth cm | 7.9 |
|---|
| Package Level 1 Height cm | 4.7 |
|---|
| Package Level 1 Gross Weight kg | 0.27 |
|---|
| Package Level 1 EAN | 3471523110038 |
|---|
| Package Level 2 Units | box 27 piece |
|---|
| Package Level 2 Width cm | 25 |
|---|
| Package Level 2 Depth cm | 30 |
|---|
| Package Level 2 Height cm | 31.5 |
|---|
| Package Level 2 Gross Weight kg | 7.29 |
|---|
