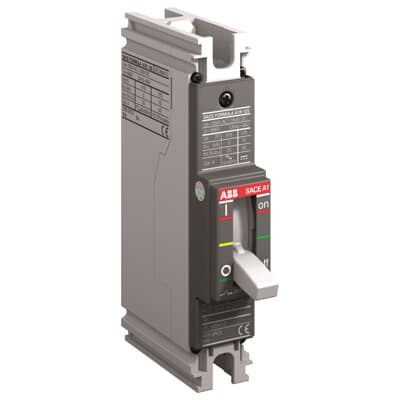

Product Name: A1C 125 TMF 20-400 1p F F
Product ID: 1SDA066486R1
Manufacturer: ABB
Description: C.BREAKER FORMULA A1C 125 FIXED SINGLE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 20-400 A
Main Type: SACE FORMULA
Type: Automatic Circuit Breaker
Version: F
Electrical Durability: 1500 cycle
Mechanical Durability: 8500 cycle
Number of Poles: 1P
Opening Time: 15 ms
Power Loss per Pole: 3 W
Rated Current (In): 20 A
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 690 V
Rated Operational Voltage: 415 V AC, 125 V DC
Rated Service Short-Circuit Breaking Capacity (Ics): (240 V AC) 9 kA, (380 V AC) 1.25 kA, (415 V AC) 1.25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (240 V AC) 18 kA, (380 V AC) 2.5 kA, (415 V AC) 2.5 kA, (125 V DC) 5 kA
Rated Uninterrupted Current (Iu): 125 A
Release: TMF
Release Type: TM
Short-Circuit Performance Level: C
Standards: IEC
Sub-type: A1
Terminal Connection Type: Front
Dimensions (cm): Width: 2.54, Height: 13, Depth/Length: 6
Weight (kg): 0.336
Packaging Level 1: Units: 1 piece, Width: 7.5 cm, Height: 14.8 cm, Depth/Length: 9.3 cm, Gross Weight: 0.354 kg
Order Code US and Canada: AAC020TW-1
Minimum Order Quantity: 1 piece
Customs Tariff Code: 85362090
