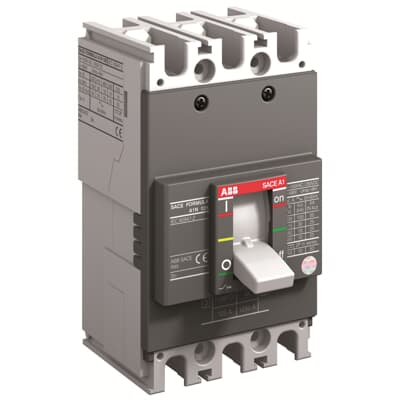

A1C 125 TMF 125-1250 3p F F
Product ID: 1SDA066720R1
Description: C.BREAKER FORMULA A1C 125 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 125-1250 A
Order Code US and Canada: AAC125TW
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362090
Dimensions (cm): Width 7.62, Height 13.0, Depth 6.0
Weight (kg): 0.789
Package Level 1 Details: 1 piece, Width 13.65 cm, Height 12.4 cm, Depth 11.05 cm, Gross Weight 0.8 kg
Main Type: SACE FORMULA
Product Type: Automatic Circuit Breaker
Alternate Product Name: Moulded Case Circuit Breaker
Version: F
Durability: Electrical 1500 cycles, Mechanical 8500 cycles
Number of Poles: 3
Opening Time: CB with SOR 15 ms and CB with UVR 15 ms
Power Loss per Pole: 11 W
Rated Current: 125 A
Rated Impulse Withstand Voltage: 6 kV
Rated Insulation Voltage: 690 V
Rated Operational Voltage: 550 V AC, 250 V DC
Rated Service Short-Circuit Breaking Capacity (Ics): 240 V AC 15 kA, 380 V AC 12.5 kA, 415 V AC 6.25 kA, 440 V AC 5 kA, 480 V AC 4 kA, 500 V AC 2.5 kA, 250 V DC 2 Poles in Series 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 240 V AC 30 kA, 380 V AC 25 kA, 415 V AC 25 kA, 440 V AC 20 kA, 480 V AC 15 kA, 500 V AC 8 kA, 250 V DC 10 kA
Rated Uninterrupted Current: 125 A
Release: TMF
Release Type: TM
Short-Circuit Performance Level: C
Standards: IEC
Sub-type: A1
Terminal Connection Type: Front
