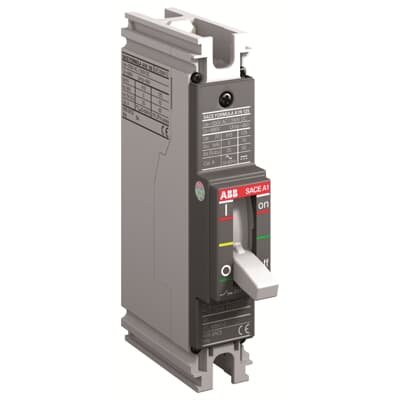

Product Name: A1C 125 TMF 32-400 1p F F
Product ID: 1SDA068754R1
Catalog Description: A1C 125 TMF 32-400 1p F F
Long Description: C.BREAKER FORMULA A1C 125 FIXED SINGLE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 32-400 A
Order Code US and Canada: AAC032TW-1
Minimum Order Quantity: 1 piece
Customs Tariff Code: 85362090
Dimensions (cm): Width 2.54, Height 13, Depth 6
Weight (kg): Net Weight 0.25, Package Gross Weight 0.3
Package Dimensions (cm): Width 7.5, Height 14.8, Depth 9.3
Product Main Type: SACE FORMULA
Product Type: Automatic Circuit Breaker
Version: F
Electrical Durability: 1500 cycles
Mechanical Durability: 8500 cycles
Number of Poles: 1
Opening Time: CB with SOR 15 ms; CB with UVR 15 ms
Power Loss: 4 W at Rated Operating Conditions per Pole
Rated Current (In): 32 A
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 690 V
Rated Operational Voltage: 415 V AC and 125 V DC
Rated Service Short-Circuit Breaking Capacity (Ics): 9 kA (240 V AC), 1.25 kA (380 V AC and 415 V AC)
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 18 kA (240 V AC), 2.5 kA (380 V AC and 415 V AC), 5 kA (125 V DC)
Rated Uninterrupted Current (Iu): 125 A
Release: TMF
Release Type: TM
Short-Circuit Performance Level: C
Standards: IEC
Sub-type: A1
Terminal Connection Type: Front
