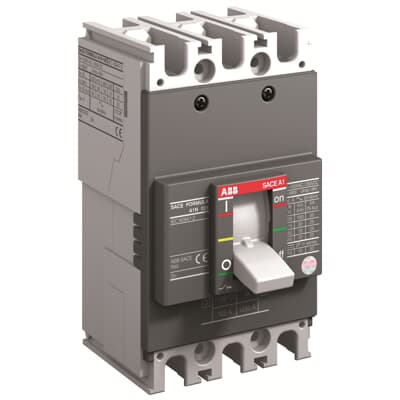

A1C 125 TMF 63-630 3p F F Moulded Case Circuit Breaker
Product ID: 1SDA068770R1
EAN: 8015644030100
Description: C.BREAKER FORMULA A1C 125 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 63-630 A
Main Type: SACE FORMULA
Type: Automatic Circuit Breaker
Version: F
Dimensions (cm): Width 7.62 x Height 13.0 x Depth 6.0
Weight (kg): 0.79
Package 1 Dimensions (cm): Width 13.65 x Height 12.4 x Depth 11.05
Package 1 Gross Weight (kg): 0.8
Electrical Durability: 1500 cycles
Mechanical Durability: 8500 operations
Poles: 3
Opening Time: CB with SOR 15 ms, CB with UVR 15 ms
Power Loss per Pole: 6 W
Rated Current (Main Circuit): 63 A
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 690 V
Rated Operational Voltage: 550 V AC, 250 V DC
Rated Service Short-Circuit Breaking Capacity (Ics): 15 kA at 240 V AC, 12.5 kA at 380 V AC, 6.25 kA at 415 V AC, 5 kA at 440 V AC, 4 kA at 480 V AC, 2.5 kA at 500 V AC, 5 kA at 250 V DC (2 Poles in Series)
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 30 kA at 240 V AC, 25 kA at 380 V AC, 25 kA at 415 V AC, 20 kA at 440 V AC, 15 kA at 480 V AC, 8 kA at 500 V AC, 10 kA at 250 V DC
Rated Uninterrupted Current (Iu): 125 A
Release: TMF
Release Type: TM
Short-Circuit Performance Level: C
Standards: IEC
Sub-type: A1
Terminal Connection Type: Front
Customs Tariff Code: 85362090
